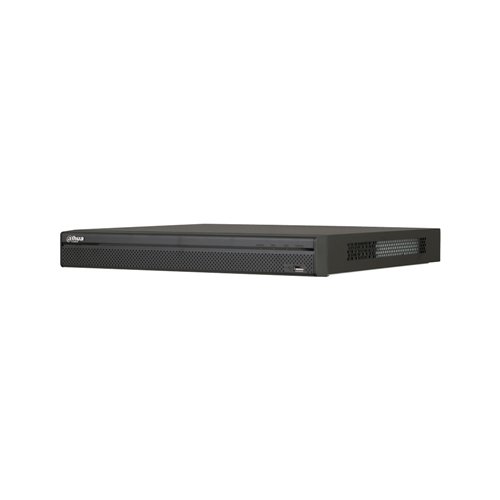

Quad-Core-Prozessor - NVR5208-8P-4KS2E

Features
- Quad-core processor
- LINUX OS
- Smart H.265+/H.265/Smart H.264+/H.264/MJPEG
- 8 IP camera input
- HDMI (4K) and VGA (1080P)
- 2 way audio: 1 RCA in / 1 RCA out
- Output division:1, 4, 8, 9
- Display resolution: 4K (3840x2160), 1080P (1920x1080), SXGA (1280x1024), 720P (1280x720), XGA (1024x768)
- Recording resolution: 12MP (4000x3000), 4K/8MP (3840x2160), 6MP (3072x2048), 5MP (2560x1920), 4MP (2560x1440), 3MP (2048x1536), 1080P (1920x1080), 1,3MP (1280x960), 720P (1280x720), etc.
- Recording speed: 320Mbps
- Bitrate per channel: 16 Kbps ~ 20 Mbps
- Motion detection: 22x18 selectable grid, video loss and masking detection
- Playback up to 8 channels
- Decoding/playback capacity:2ch 12MP@20fps, 4ch 8MP@25fps, 5ch 6MP@25fps, 6ch 5MP@25fps, 8ch 4MP@20fps
- Display/playback supported of thermal cameras
- Alarm: 4 in / 2 out
- Internal storage:2x SATA III, up to 10TB per port (HDD is not included)
- ePoE technology simplifies the network structure of long-range surveillance projects, eliminating the requirement for extra network repeater devices
- EoC technology makes it possible to upgrade existing systems to high definition IP surveillance while using existing coax cables
- IVS: Detection and analisys of objects in movement, abandoned or lost. Tripwire supported
- Heat map and people counter
- Facial detection technology
- Point of Sale (POS)
- Multiple fisheye dewarping modes (live/playback)
-License plate recognition
- LPR, import / export of black / white lists, search results of recorded video
- ANR technology: In case of network failure images with be stored in the SD card of the IP camera, and when network its restored will de transfered to the NVR
- VQD, Video Quality Diagnosys
- 1x RJ45 (10/100/1000M)
-8x PoE+ports(IEEE802.3at/af),with ePoE and EoC support
- Network protocols: HTTP, HTTPs, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP filter, PPPoE, DDNS, FTP, Alarm server, IP search (IP Dahua, DVR, NVS, etc.), P2P
- ONVIFVersion2.4
- Remote access up to 128 users
- Connections:1 USB 2.0, 1 USB 3.0, 1 RS485, 1 RS232
- Local network and internet server access
- Can be remotely controlled by Joystick connected with RS485 and/or TCP/IP
- Independent motion detection configuration by camera
- Compatible with 3D positioner function (compatible PTZ domes)
- Software and hardware watchdog
-Watermark
- Posibility of limit access to users to cameras on local/remote mode
- Masking areas, video loss/blank camera alarm
- Multilanguage screen menu
- Display, configuration and remote control by TCP/IP with client programm abd IE browser (compatible with FIrefox and Chrome)
- eMails sended with attached picture on alarm
- Programmed FTP or alarmed sending
- Posibility to send alarm and be connected to videosurveillance software receiver
- Display on iPhone, iPad and Android
- Fixed/dynamic IP by Dyndns service, NoIP, DDNS Evolution, etc.
- Power supply: 100V ~ 240V AC,50 ~ 60 Hz
- NVR consumption: <15,2W (without HDD)
- PoE consumption:25,5W per port with a limit of 130W in total
- Working temperature: -10°C ~ +55°C
- RH: 0~90%
- Dimensions:375 x 326,5 x53 mm (1U)
- Weight: 2,7 kg (without HDD)
