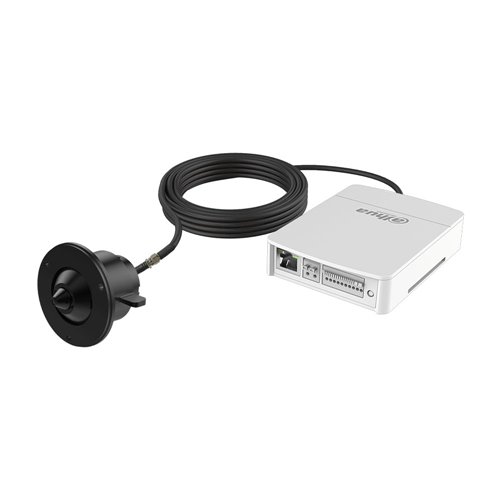

DH-IPC-HUM8241P-E1-L1-0280B - Mini-IP-Tag / Nacht-Kamera. H.265 + ...

Specifications

1 / 2.8 ”CMOS sensor, 2 megapixels
Compression formats H.265 + / H.265 / H.264 + / H.264
Digital Resolution: 1080P (1920x1080), 1.3MP (1280x960), 720P (1280x720), D1 (704x576), CIF (352x288), VGA (640x480)
Stream 1: 1080P (1 ~ 25 ips)
Stream 2: D1 (1 ~ 25 ips)
Stream 3: 1080P (1 ~ 25 ips)
Minimum illumination: 0.005 lux F2.0 (color, 30IRE), 0.0005 lux F2.0 (B / W, 30IRE)
2.8mm pinhole lens
Viewing angle: 105 ° (H), 58 ° (V), 118 ° (D)
White balance: auto / natural / streetlight / outdoor / manual / configurable region
Auto / manual gain control
Backlight Compensation (BLC, HLC, True WDR 120dB)
3D-NR noise reduction
4 rectangular zones video sensor
4 privacy masks
4-zone ROI
Mirror mode
Defog
Perimeter protection with line crossing detection, intrusion detection, rapid motion detection (all three modes support person / vehicle classification), loitering detection, people gathering detection and parking detection
Face detection with three capture methods
1 audio input / 1 output
2 alarm inputs / 2 outputs
1 RS232 port
MicroSD card slot up to 256GB (card not included)
Network interface: RJ45 (10/100 Base-T)
Network protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP
Compatible with ONVIF (S / G / T), CGI, P2P, Milestone, Genetec
Up to 20 users
Power supply: 12V DC
Consumption: 3.7W
PoE 802.3af
-40 ° C ~ + 60 ° C operating temperature
Humidity: <95%
Main unit dimensions: 110 x 83 x 24 mm
Sensor unit dimensions: Ø30.5 x 48.7 mm
Weight: 210g
