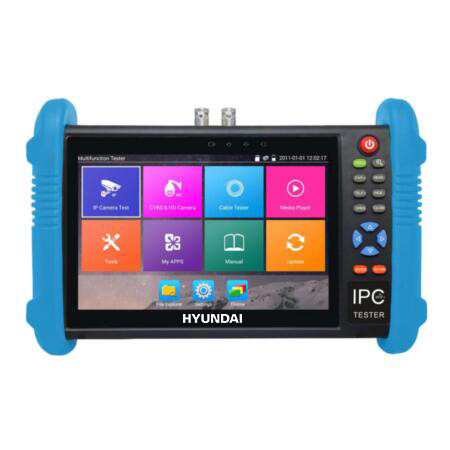

HYU-274N - 5-in-1 Multifunktions-CCTV-Tester ...

Characteristics

• HYU-274N
•     5-in-1 multi-function CCTV tester (CVBS, CVI, TVI, AHD, IP)
•     7 "touch screen (1200x800 pixels)
•     Supports H.265, 4K and H.265 / H.264 decoding with main stream display
•     HDMI input signal, support 1080P
•     HDMI output with a resolution of 1920x1080
•     Dual IP / analog test (simultaneous analog and IP camera test)
•     Drop-down menu, menu accessible via shortcut key
•     Incorporates WiFi: Allows receiving images from WiFi cameras and supports the creation of WiFi hotspot
•     Supports HD-TVI 3.0 and HD-CVI 3.0 with 4MP and 3MP CVI and TVI camera image tests
•     AHD / CVI / TVI camera test supports image capture, video recording and playback and 4X magnification
•     CVBS loop test: Transmits or receives analog video signal
•     ONVIF IP camera test, supports 2592x1520 resolution
•     Analog camera image display: Automatically adapts to PAL and NTSC formats
•     Custom IP cameras with support for more than 80 brands (DAHUA, KEDA, Samsung, HIKVISION, TIANDY, etc.)
•     Fast onvif: With one key we generate a test report, including IP address, resolution and decoding
•     Connection of IP cameras by RJ45 and WiFi, supports 1080p
•     2 Gigabit Ethernet ports
•     WiFi analyzer
•     The tester can rotate 180 °, ideal for cable and power connection
•     Real-time display
•     PTZ control, image captures, video recording, recorded video playback
•     TV output with color bar generator
•     UTP cable test: TDR function (to locate and locate break points in UTP cable), connection status, cable sequence on screen, saving test report
•     PoE voltage measurement, PING test, IP address scan, port flashing, etc.
•     48V DC PoE Output: Supplies temporary power to PoE cameras
•     24V DC, 12V / 2A and 5V / 2A power output
•     Audio input / output
•     LED flashlight, calculators, players and other tools / applications
•     Power supply: 12V DC / 2A
•     Incorporates 7.4V, 7500mAh polymer lithium battery
•     Working temperature: -10 ° C ~ + 50 ° C
•     Dimensions: 240 x 145 x 46 mm
•     Weight: 620 g
•     Includes apps: EVOPLUS, HYUVMS, ASMS, HYU CONNECT, HYUPLUS
