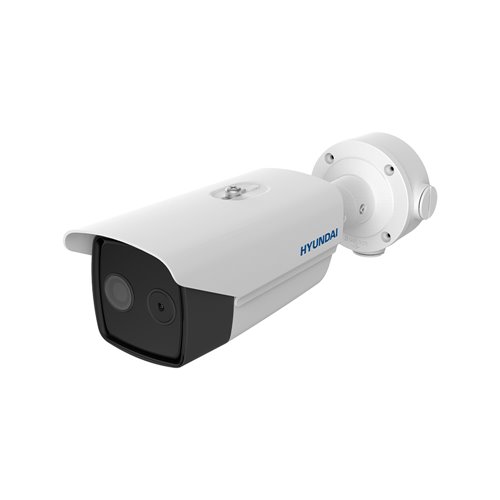

HYU-745 - Hyundai NextGen Thermal Bullet + VI ...

Thermal camera

• HYU-745
• FPA sensor (focal plane matrices) not cooled with vanadium oxide
• Thermal resolution of 160x120 (the output image is 320x240)
• Pixel Interval: 17μm
• Thermal sensitivity (NETD): <40 mk (@ 25°C, f / 1.1)
• Spectrum range: 8 μm ~ 14 μm
• Focal length (thermal): 3.1 mm
• Viewing angle (thermal): 50 ° x 37.2 °
• Minimum focusing distance of 0.2 meters
• Effective distance in people: Detection (91 m), recognition (23 m), identification (11 m)
• Effective distance in vehicles: Detection (280 m), recognition (70 m), identification (35 m)
• 15 adjustable color palettes, 3D-DNR
• Dynamic detail enhancement
• Supports 4 types of VCA rules (intrusion, line crossing, region input and region output), maximum 8 rules
• Temperature range from -20 ° C ~ + 150 ° C
• Temperature accuracy of ± 8 ° C
• Supports 3 types of temperature measurement rules, 21 rules (10 points, 10 regions and 1 line)
• Supports 10 fire detection points


Visible camera

• HYU-745
• Image sensor (visible camera) CMOS 1 / 2.8 Progressive Scan 2 megapixels
• Effective pixels: 1920 x 1080
• 40 meter infrared lighting
• Minimum illumination: 0.002 lux F1.5 (color) / 0.0002 lux F1.5 (B / N) / 0 lux IR On
• Focal length (visible optics): 4 mm
• Viewing angle (visible optics): 87 ° x 46.2 °
• Removable mechanical filter
• Digital WDR
• Supports merging of bi-spectrum images, image preview in image and image change


IP communication and integration

• HYU-745
• Compression formats: H.265 + / H.265 / H.264 / H.264 + / MJPEG (baseline / main / high profile)
• Stream 1 thermal camera: 160x120 at 25 ips (the output image is 320x240)
• Stream 2 thermal camera: 160x120 at 25 ips (the output image is 320x240)
• Stream 1 visible camera: 1080P / 1.3MP / 720P at 25 ips
• Stream 2 visible camera: D1 / CIF / QCIF at 25 ips
• Audio compression: G.711u / G.711a / G.722.1 / MP2L2 / G.726 / PCM
• 1 RJ45 10 / 100M auto-adaptive port
• Protocols: IPv4 / IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP,
• RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
• Up to 20 simultaneous visualizations
• Up to 32 users, 3 levels: administrator, operator, user
• Compatibility API, ONVIF, API, ISAPI, and third-party management gateway
• Compatible with IE9 +, Chrome31-44, Firefox30-51, Safari5.02 + (Mac) browsers
• 2 inputs / 2 alarm outputs
• 1 input / 1 audio output
• Reset button
• MicroSD / SDHC / SDXC card slot (up to 128 GB), with support for manual or alarm recording
• BNC output 1.0V [p-p] / 75Ω (PAL / NTSC)
• RS485 port


Electric and environmental

• HYU-745
• Power supply: 12V DC, PoE (802.3af, class 4)
• Consumption: max. 12W
• Operating temperature of -40 ° C ~ + 60 ° C
• Relative humidity: ≤90% (without condensation)
• IP66 protection degree
• 6KV lightning-proof

Physical characteristics

• HYU-745
• Metal housing
• Dimensions: 113.5 (W) x 114.7 (H) x 352.4 mm
• Weight: 1.5 kg
• Includes wall bracket and tube base


Note: The actual distance values ??shown are nominal values ??and should be used as an estimate. Check with your salesperson for the recommended detection distances with our Vaelsys perimeter system.
