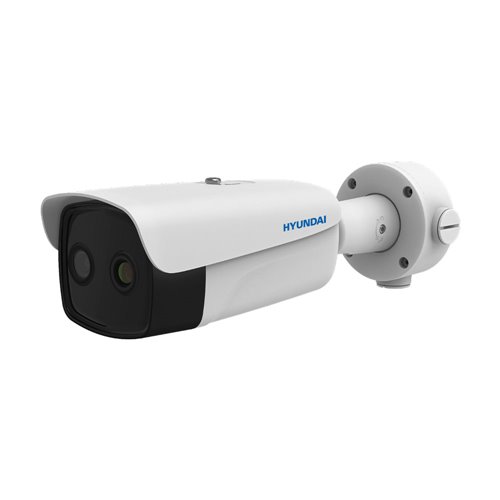

HYU-909 - Thermische + sichtbare Kugelkamera ...

Thermal camera

    Uncooled Vanadium Oxide FPA (Focal Plane Arrays) Thermal Image Sensor
    160x120 thermal resolution (output resolution is 320x240)
    Pixel pitch: 17μm
    Thermal sensitivity (NETD): ≤40 mk (@ 25 ° C, f / 1.1)
    Spectrum range: 8 μm ~ 14 μm
    Focal length (thermal): 3.1mm
    Viewing Angle (Thermal): 50 ° x 37.2 °
    0.2 meter minimum focusing distance
    Effective distance in people: Detection (91 m), recognition (23 m), identification (11 m)
    Effective distance in vehicles: Detection (280 m), recognition (70 m), identification (35 m)

Visible camera

    Image Sensor (Visible Camera) 4 Megapixel 1 / 2.7 Progressive Scan CMOS
    Effective pixels: 2688 x 1520
    40 meter infrared illumination
    0.0089 lux F1.6 (color), 0.0018 lux F1.6 (B / W)
    Focal Length (Visible Optics): 4mm
    Angle of View (Visible Optics): 84 ° x 44.8 °
    WDR 120dB
    Displays the partial image of the thermal channel on the full screen of the optical channel
    Displays the details of the optical channel in the thermal channel
    Supports hot white and hot black mode target coloring

Smart features

    Support 4 kinds of VCA rules (intrusion, line crossing, region in and region out), maximum 8 rules
    Effective ACV distance: 21m (people), 63m (vehicles), 66m (temperature measurement, 2x2m), 33m (temperature measurement, 1x1m), 180m (fire detection, 2x2m), 90 m (fire detection, 1x1 m)
    Support 3 kinds of temperature measurement rulers, 21 rulers (10 points, 10 regions and 1 line)
    -20 ° C ~ + 150 ° C temperature range
    ± 8 ° C temperature accuracy
    Dynamic fire detection with up to 10 fire detection points

IP communication and integration

    Compression formats: H.265 / H.264 / MJPEG
    Stream 1 thermal camera: 720P, D1, VGA, QCIF, QVGA (25 ips)
    Stream 2 thermal camera: D1, CIF, QVGA (25 ips)
    Stream 1 visible camera: 4MP, 1080P, 720P (25 ips)
    Stream 2 visible camera: D1, CIF, QCIF (25 ips)
    Audio compression: G.711u / G.711a / G.722.1 / MP2L2 / G.726 / PCM
    1 self-adaptive 10 / 100M RJ45 port
    Protocols: IPv4 / IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
    Up to 20 simultaneous views
    Up to 32 users, 3 levels: administrator, operator, user
    Compatibility: ONVIF S / G / T, ISAPI, SDK, and 3rd party management gateway
    Compatible with IE11, Chrome57.0 +, Firefox52.0 + browsers
    2 alarm inputs / 2 outputs
    1 audio input / 1 output
    MicroSD / SDHC / SDXC card slot (up to 256 GB), with support for manual or alarm recording

Electrical and environmental

    Power: 12V DC (± 20%), PoE (802.3af, Class3)
    Consumption: Max. 7.5W (8W PoE)
    -40 ° C ~ + 60 ° C operating temperature
    Relative humidity: ≤95% (non-condensing)
    Degree of protection IP66
    6KV Lightning-proof

Physical characteristics

    Metal housing
    Dimensions: 113.5 (W) x 115.2 (H) x 358.3mm
    Weight: 1.76 kg
    Includes wall bracket and tube base

Note: The effective distance values ??shown are nominal values ??and should be used as an estimate. Consult with your sales representative for the recommended detection distances with our Vaelsys Perimeter System.
