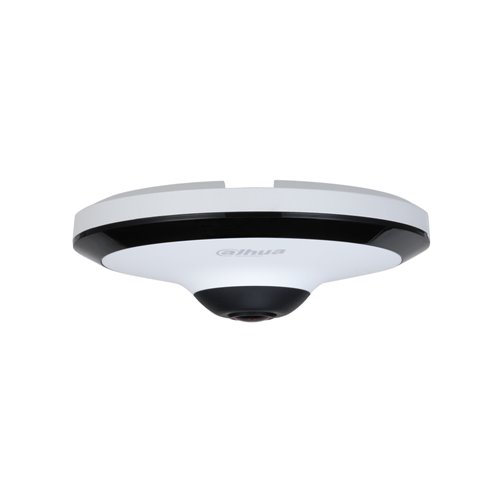

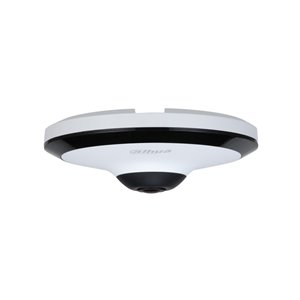

IPC-EW5541-AS - Dahua IP Fisheye-Kuppel mit Smart IR ...

Characteristics

• IPC-EW5541-AS
•     1 / 2.7 ”5 megapixel CMOS sensor
•     Smart H.265 + and Smart H.264 + encoding with triple stream
•     Resolution 5MP (2592x1944) at 25 ips
•     Multiple dewarping mode
•     WDR 120dB, day / night with ICR filter, 3D-DNR, AWB, AGC, BLC
•     Smart detection
•     Smart features
•     Heat map
•     1.4mm fisheye optics
•     Infrared illumination up to 10 meters
•     Incorporates microphone
•     1 alarm input / 1 output
•     MicroSD slot
•     Supports PoE

Specs

• IPC-EW5541-AS
•     1 / 2.7 ”5 megapixel CMOS sensor
•     Compression formats: Smart H.265 + / H.265 / Smart H.264 + / H.264 / MJPEG
•     Digital Resolution 5MP (2592x1944), 3MP (2048x1536), UXGA (1600x1200), 1.3MP (1280x960), 720P (1280x720), D1 (704x576), VGA (640x480), CIF (352x288)
•     Stream 1: 5MP (1 ~ 25 ips)
•     Stream 2: D1 (1 ~ 25 ips)
•     Stream 3: 720P (1 ~ 25 ips)
•     Day / night mode with ICR filter
•     Smart IR: 3 white LEDs, 10 meters
•     0.006 lux F2.0
•     1.4mm fisheye optics
•     Viewing angle: 180 ° (H), 180 ° (V), 180 ° (D)
•     White Balance: Auto, Natural, Street Light, Outdoor, Manual, Regional Settings
•     Automatic and manual gain control
•     Backlight compensation: BLC, HLC
•     WDR 120dB
•     3D-DNR digital noise reduction
•     4 ROI zones
•     4-zone rectangular video sensor
•     4 Rectangular Zone Privacy Mask
•     People Counting: Supports people counting in up to 4 areas and displays and generates annual / monthly / daily reports (matching devices required)
•     Intelligent Detection (IVS): Line Crossing and Intrusion Detection
•     Heat map
•     1 RCA audio input / 1 output
•     Incorporates microphone
•     1 alarm input / 1 output
•     MicroSD card slot up to 256GB (card not included)
•     Network interface: RJ45 (10/100 Base-T)
•     Network protocols: IPv4, IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, 802.1x, SNMP
•     Compatible with ONVIF (Profile S / G / T), CGI, Milestone, P2P, SDK, API
•     Up to 20 users
•     Remote viewing through IE8 / 9/11, Chrome, Firefox browsers
•     Smart PSS, DSS, DMSS management software
•     Compatible with IOS and Android mobile devices
•     Power: 12V DC
•     Consumption: 3.6W, 7.3W with infrared activated, H.265, WDR and IVS
•     Supports PoE (802.3 af, Class 0)
•     PoE consumption: 4.4W, 8.8W with infrared activated, H.265, WDR and IVS
•     Storage temperature -40 ° C ~ + 60 ° C
•     -10 ° C ~ + 50 ° C operating temperature
•     Humidity: <95%
•     Not suitable for outdoor
•     Plastic and metal housing
•     Dimensions: Ø126.2 x 44.6 (Al) mm
•     Weight: 299g
•     Does not include feeder
