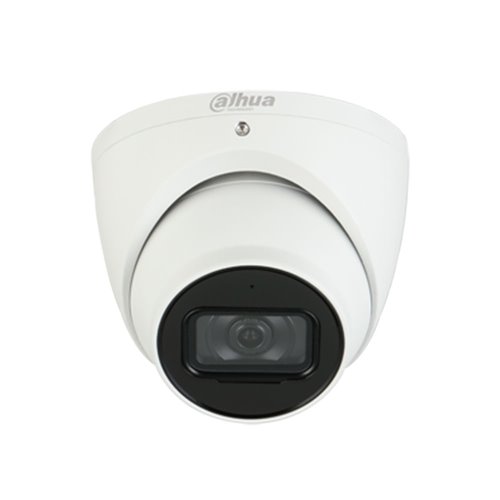

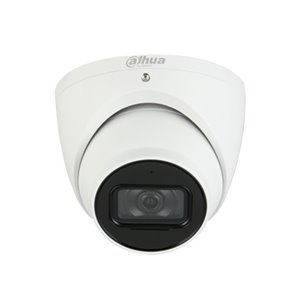

IPC-HDW5541TM-AS - Feste Dome IP AI-Serie mit 50 m ...

Features

• IPC-HDW5541TM-AS
• 1 / 2.7 ”5 megapixel CMOS sensor
• H.265 and H.264 encoding with triple stream
• Resolution 5MP (2592x1944) at 20 ips, 1080P (1920x1080) at 50 ips
• WDR 120dB, day / night with ICR filter, 3D-DNR, AWB, AGC, BLC
• Multiple remote monitoring via web browser, CMS (DSS / PSS) and DMSS
• 2.8mm fixed optics
• Infrared lighting up to 50 meters
• Incorporates microphone
• MicroSD slot
• Degree of protection IP67
• Supports PoE


Specifications

• IPC-HDW5541TM-AS
• 1 / 2.7 ”5 megapixel CMOS sensor
• Compression formats: H.265 + / H.265 / H.264 + / H.264 / MJPEG
• Digital resolution: 5MP (2592x1944), 4MP (2688x1520), 4MP (2560x1440), 3MP (2304x1296), 1080P (1920x1080), 1.3MP (1280x960), 720P (1280x720), D1 (704x576), VGA (640x480), CIF (352x288)
• Stream 1: 5MP (1 ~ 20 fps), 4MP (1 ~ 25 fps), 1080P (1 ~ 50 fps)
• Stream 2: D1 (1 ~ 20 fps), D1 (1 ~ 50 fps)
• Stream 3: 1080P (1 ~ 17 fps)
• Day / night mode with removable mechanical filter
• Smart IR: 2 leds, 50 meters
• 0.005 lux F1.6
• 2.8mm fixed optics
• Viewing angle: 102 ° (H), 71 ° (V)
• White balance: Automatic, Natural, Streetlight, Outdoor, Manual
• Automatic and manual gain control
• Backlight Compensation: BLC, HLC
• WDR 120dB
• 3D-DNR digital noise reduction
• 4 ROI zones
• Video sensor with 4 rectangular zones
• 4 rectangular zone privacy mask
• Defog
• Mirror mode
• Artificial intelligence:
• Facial Capture: Supports facial image captures
• Perimeter protection: Line crossing, Intrusion (people / vehicles classification)
• People count: Supports line crossing count, region crossing
• Supports 4 independent detection accesses and 4 independent detection areas
• Intelligent Detection (IVS): Changes in the scene, abandoned / lost objects
• It incorporates microno
• MicroSD card slot up to 256GB (not included)
• Network interface: RJ45 (10/100 Base-T)
• Network protocols: HTTP, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, IPv4 / v6, SNMP, QoS, UPnP, NTP, ICMP, HTTPS, IGMP, 802.1x
• Compatible with ONVIF (Profile S / G), CGI, Milestone, P2P
• Unicast / Multicast streaming method
• Up to 20 users
• Remote viewing through IE, Chrome, Firefox and Safari browsers
• Smart PSS, DSS, DMSS management software
• Compatible with IOS and Android mobile devices
• Power: 12V DC
• Consumption: <7.2W
• Supports PoE (802.3 af, Class 0)
• Degree of protection IP67
• Storage temperature of -30 ° C ~ + 60 ° C
• Operating temperature of -30 ° C ~ + 60 ° C
• Humidity: 10% ~ 95%
• Metal housing
• Dimensions: Ø106 x 93.6 (H) mm
• Weight: 550 g
• 3AXIS: 0 ° ~ 360 ° (PAN), 0 ° ~ 78 ° (TILT), 0 ° ~ 360 ° (Rotation)
• Power supply is not included
