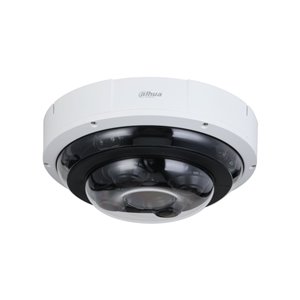

IPC-PDBW82041-B360 - Dahua IP Panorama Multi-Lens-Motor ...

Specs

    Quad sensor: Four 5 megapixel 1 / 2.7 ”CMOS units
    Single stream resolution: 5MP (2592x1944), 4MP (2688x1520), 3MP (2048x1536), 1080P (1920x1080), 720P (1280x720), D1 (704x576), CIF (352x288)
    FlexStream Resolution: 8MP (3296x2472), 5MP (2592x1944), 2MP (1600x1200), 1.3MP (1280x960), D1 (704x576), CIF (352x288)
    Single Streaming: Stream 1 at 5MP (1 ~ 25 ips), Stream 2 at D1 (1 ~ 25 ips), Stream 3 at 1080P (1 ~ 25 ips)
    FlexStream: Stream 1 to 2MP (1 ~ 25 ips), Stream 2 to D1 (1 ~ 25 ips), Stream 3 to 8MP (1 ~ 25 ips)
    Day / night mode with removable mechanical filter (ICR)
    0.005 lux F1.7 (color) / 0.0005 lux F1.7 (B / W) / 0 lux IR On
    Smart IR: 8 LEDs, up to 30 meters
    Smart H.265 +, Smart H.264 +, H.265, H.264 and MJPEG video compression
    2.8 ~ 12mm motorized lens
    Viewing angle: 100 ° ~ 36 ° (H), 74 ° ~ 27 ° (V), 133 ° ~ 45 ° (D)
    Picture modes: BLC, HLC, 4x WDR 120dB, 3D-NR, Mirror
    White balance with 6 modes
    Automatic and manual gain control
    Supports 4-zone video sensor, 4 regions of interest (ROI) and 4-zone privacy mask
    Perimeter protection with line crossing detection, intrusion detection and rapid motion detection with classification of people and vehicles
    Facial detection with extraction of 6 attributes and 8 facial expressions
    Smart Search: Work together with Smart NVR to perform refined smart search, event extraction and merge to event video
    IVS Intelligence: Detection of Abandoned or Lost Objects
    MicroSD card slot up to 256GB (card not included)
    1 RCA input / 1 RCA audio output
    3 alarm inputs / 2 outputs
    1 RS485 port
    Network interface: RJ45 (10/100/1000 Base-T)
    Network protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP
    Remote viewing with browsers (IE9, Chrome 41.0, Safari and Edge) and IOS and Android smartphones
    Smart PSS and DSS management software
    Interoperability: ONVIF S / G / T, CGI, Milestone, RTMP, P2P
    Power: 12V DC
    Consumption: Max. 21.5W
    Supports PoE + (802.3 at)
    PoE Consumption: Max. 22.2W
    Storage temperature: -30 ° C ~ + 60 ° C
    Operating conditions: -30 ° C ~ + 60 ° C, relative humidity <95%
    Degree of protection IP67
    IK10 vandal protection
    Metal and plastic housing
    Dimensions: Ø286.1 x 111.3 (Al) mm
    Weight: 2.75 kg
    3AXIS: 0 ° ~ 360 ° (PAN), 0 ° ~ 80 ° (TILT), 0 ° ~ 355 ° (Rotation)
    Does not include feeder
