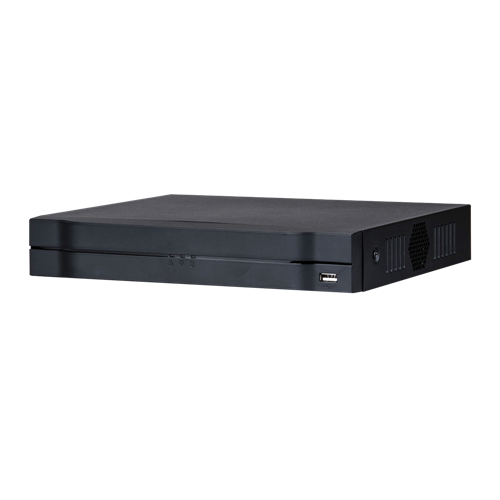

NVR308-8M-H1-P8 - 8-Kanal IP NVR 4K / 8MP. H.265 / H.26 ...




Features
- 8 channel IP NVR with 8 port PoE/PoE+ switch
- Dual Core processor
- LINUX embedded OS
- H.265/H.264
- 8 IP camera inputs
- Video outputs: VGA (1920x1080) and HDMI (3840x2160)
- 2 wya audio: 1 RCA in / 1 RCA out
- Live display: 1 channel @ 8MP/4K (3840x2160) or 4 channels @ 1080P (1920x1080)
- Output division: 1, 4, 8, 9
- Display resolution: 4K/8MP (3840x2160), 1080P (1920x1080), SXGA (1280x1024), 720P (1280x720)
- Resolución de grabación: 4K/8MP (3840x2160), 6MP (3072x2048), 5MP (2560x1920), 4MP (2560x1440), 3MP (2048x1536), 1080P (1920x1080), 720P (1280x720), etc.
- Recording speed: 80 Mbps
- Bitrate: 16 ~ 20480 Kbps
- Playback: 4 channel @ 1080P (1 channel @ 8MP/4K)
- Motion detection: 22x18 selectable grid, adjustable sensibility, video loss/masking detection
- Storage: 1 SATA III (up to 6TB per disc, not included)
- Network interface: RJ45 (10/100M)
- Network protocols: HTTP/HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, NTP, DHCP, DNS, filtro IP, DDNS, IP search
- ONVIF 2.4
- Remote access up to 128 users
- Connections: 2 USB 2.0
- Local network and internet server access
- Independent motion detection configuration by camera
- Compatible with 3D positioner function (compatible PTZ domes)
- Software and hardware watchdog
- Watermark
- Limit user acces to cameras on local/remote mode
- Masking areas, video loss/masking alarm
- Multilanguage menu on screen
- Display, configuration and remote control by TCP/IP with client programm and web browser (IE, Chrome, Firefox)
- Email sended with attached picture
- Programed FTP or alarmed sending
- Display on iPhone and Android
- Compatible with IDMSS, EVOPLUS and SMARTPSS
- Power supply: 48V DC, 1,25A
- NVR consumption: <5,8W (without discs)
- PoE consumption: Up ot 25,5W per port, with  max. of 80W
- Working temperature: -10°C ~ +55°C
- Storage temperature: -20°C ~ +70°C
- RH: 0~90%
- Dimensions: 260 x 224,9 x 47,6 mm (Desktop)
- Weight: 800 g (without HDD)
