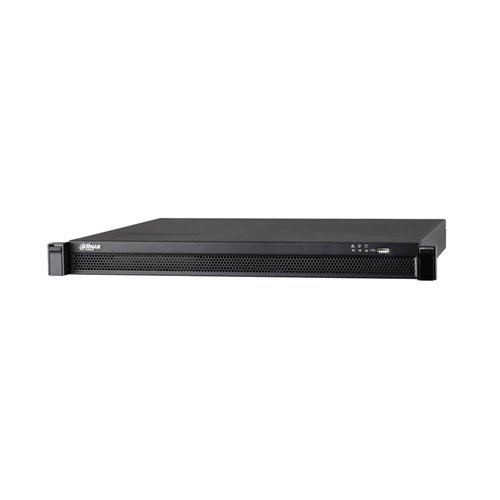

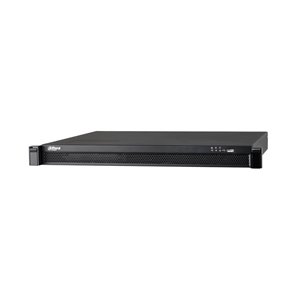

NVR5224-24P-4KS2 - 24 Kanal IP NVR bis 12MP mit 2 ...



- 24 channel IP NVR up to 12MP, H.265 format
- Quad-core processor
- LINUX O/S
- Smart H.265+/H.265/Smart H.264+/H.264
- 24 IP camera inputs
- HDMI video output (up to 4K) and VGA (1920x1080)
- 2 way audio: 1 RCA in / 1 RCA out
- HDMI 1 display split: 1, 4, 8, 9, 16, 25
- Display resolution: 4K (3840x2160), 1080P (1920x1080), SXGA (1280x1024), 720P (1280x720), XGA (1024x768)
- Recording resolution: 12MP (4000x3000), 4K/8MP (3840x2160), 6MP (3072x2048), 5MP (2560x1920), 4MP (2560x1440), 3MP (2048x1536), 1080P (1920x1080), 720P (1280x720), etc.
- Recording speed: 320 Mbps
- Bitrate per channel: 16 Kbps ~ 20 Mbps
- Motion detection: 22x18 selectable grid, adjustable sensibility, video loss and masking detection
- 16 channel playback
- Alarm: 4 in / 2 out
- Internal storage: 2 SATA III ports, up to 8TB per port (HDD is not included)
- IVS: Analisys and detection of moving objects, abandoned or lost. Tripwire
- Facial detection
- POS, ideal for shops and supermarkets, allowing the NVR to receive a POS transaction through the corresponding video (this feature allows merchants to analyze specific transactions through a search algorithm)
- The heat map option highlights the areas with the highest concentration of people. This information can be exported to a custom report
- It features multiple fisheye dewarping modes to make video viewing easy, either live or during playback
- Automatic LPR for in/out
- LPR, import/export of white/black list, search results for recorded video
- ANR technology: In case of network failure the images are recorded on the SD card of the IP camera, which are transferred to the NVR once the network is restored
- 1x RJ45 (10/100/1000M)
- 24x PoE (IEEE802.3at/af)
- Network protocols: HTTP, HTTPs, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, Filtro IP, PPPoE, DDNS, FTP, Alarm Server, IP Search
- ONVIF Version 2.4
- Remote access up to 128 users
- Connections: 1 USB 2.0, 1 USB 3.0, 1 RS232
- Local network and internet server access
- Remote control via joystcik connected by RS485 or TCP/IP
- Independent motion detection configuration by camera
- Compatible with 3D positioner function (compatible PTZ domes)
- Software and hardware watchdog
- Watermark
- Limit user access to cameras in local/remote mode
- Masking areas, video loss and camera blank alarm
- Multilanguage screen menu
- Display, configuration and remote control by TCP/IP with client programm and web browser (IE, Chrome and Firefox)
- Email with attached picture sending
- FTP programmed or alarmed sending
- Display on iPhone, iPad and Android
- Fixed/dynamic IP via Dyndns service, NoIP, DDNS Evolution, etc.
- Power supply: 100V ~ 240V AC, 50 ~ 60 Hz
- NVR consumption: <18W (without discs)
- PoE consumption: 25,5W per port with a limit of 210W
- Working temperature: -10°C ~ +55°C
- RH: 0~90%
- Dimension: 440 x 420 x 43,5 mm (1U)
- Weight: 4,5 kg (sin HDD)
