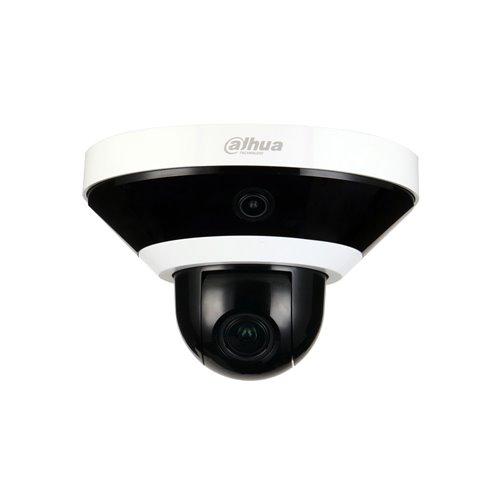

PSDW5631S-B360 - Motorisierter Kuppel von 51 ° / sek., Mit 3 ...

Features

• PSDW5631S-B360
• 3 panoramic 1/2,7" CMOS, 2MP camera sensors
• 1/2,7" CMOS motorized camera sensor, 2 MP
• H.265/H.264 with dual stream
• 1080P at 25 frames per second
• 360° panoramic view supported
• Day/night (ICR), 3D-DNR, AWB, AGC, BLC
• IR illumination up to 15 meters
• MicroSD slot for up to 256GB cards
• PoE+ supported

Panoramic camera

• PSDW5631S-B360
• 3x 1/2,7” CMOS sensor, 2 MP
• Digital resolution: 1080P (1920x1080), 1,3MP (1280x960), 720P (1280x720), D1 (704x576), VGA (640x480), CIF (352x288)
• Stream 1: 1080P (1~25 fps)
• Stream 2: D1 (1~25 fps)
• IR illumination up to 15 meters
• Minimum illumination: 0,03 lux F2.2 (color, 1/3s, 30IRE), 0,2 lux F2.2 (color, 1/30s, 30IRE), 0,03 lux F2.2 (B/W, 1/3s 30IRE), 0,2 lux F2.2 (B/W, 1/30s, 30IRE)
• 2 mm lens
• Viewing angle: 136°(H), 78°(V)
• Privacy mask of 4 zones

Motor camera

• PSDW5631S-B360
• 1/2,7” CMOS sensor, 2 MP
• Digital resolution: 1080P (1920x1080), 1,3MP (1280x960), 720P (1280x720), D1 (704x576), VGA (640x480), CIF (352x288)
• Stream 1: 1080P (1~25 fps)
• Stream 2: D1 (1~25 fps)
• Minimum illumination: 0,02 lux F1.8 (color, 1/3s, 30IRE), 0,1 lux F1.8 (color, 1/30s, 30IRE), 0,02 lux F1.8 (B/W, 1/3s 30IRE), 0,2 lux F1.8 (B/W, 1/30s, 30IRE)
• 5X optical zoom: 2,7 ~ 13,5 mm motor lens
• Viewing angle: 105,9°~33,3°(H), 56°~18,7°(V)
• Horizontal positioner: 0° ~ 355°
• Vertical positioner: 0° ~ 80°
• Manual speed: 32° ~ 51°/sec. (H), 22° ~ 40°/sec. (V)
• Preset speed: 51°/sec. (H), 40°/sec. (V)
• 80 presets
• DH-SD and Pelco-D/P protocols (automatic recognition)
• Privacy mask of 24 zones

General

• PSDW5631S-B360
• Day/night mode with removable mechanical filter
• White balance: Automático, Natural, Light, Outdoor, Manual
• Gain control: Auto, Manual
• Backlight compensation (BLC, HLC)
• Digital WDR
• 3D-DNR
• 4x ROI
• Motion detection of 4 rectangular zones
• 16X digital zoom
• Mirror mode
• IVS: Trpwire and intrusion
• Audio: 1 in / 1 out
• Alarm: 3 in / 2 out
• RS485
• Network interface: RJ45 (100/1000 Base-T)
  Network protcol: HTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP, SNMP
• Compatible with ONVIF (Profile T), CGI
• Unicast / Multicast streaming method
• Up to 10/20 users
• Remote display via IE, Chrome, Firefox and Safari
• Management software Smart PSS, DSS, DMSS
• Compatible with IOS and Android
• MicroSD card slot up to 256GB (card is not included)
• Power supply: 12V DC
• Consumption: <7,2W, max. 14,8W
• PoE supported (802.3 af, Class 0)
• PoE consumption: 7,4W, max. 16,1W
• Not suitable for outdoors
• Working temperature -10°C ~ +50°C
• RH: <95%
• Metal and plastic case
• Dimensions: Ø172 x 123,4 mm
• Weight: 780 g
• Power supply is not included
