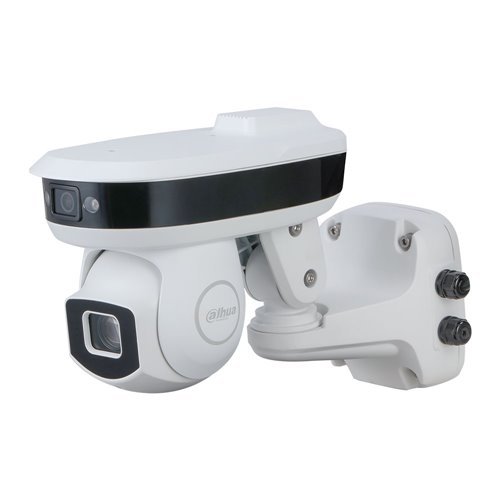

SDT5A405WA-4F-B - DAHUA STARLIGHT IP Motorisierte Kuppel ...

Features

• SDT5A405WA-4F-B
• 1/1.8" CMOS panoramic sensor, 4 MP
• 1 / 1.8 "4 megapixel CMOS PTZ sensor
• H.265 / H.264 compression format with triple stream
• Starlight technology
• 5X optical zoom
• 4MP (2688x1520) at 25 frames per second
• Perimeter protection and autotracking based on Deep-learning
• Infrared lighting up to 100 meters
• MicroSD slot for cards up to 256GB
• IP66 protection degree
• Supports Hi-PoE


Panoramic camera

• SDT5A405WA-4F-B
• 1/1.8" 4 megapixel CMOS sensor
• Digital resolution: 4MP (2688x1520), 1080P (1920x1080), 1.3MP (1280x960), 720P (1280x720), D1 (704x576), CIF (352x288)
• Stream 1: 4MP, 1080P, 1.3MP, 720P (1 ~ 25 fps)
• Stream 2: D1, CIF (1 ~ 25 fps)
• Stream 3: 1080P, 1.3MP, 720P, D1, CIF (1 ~ 25 fps)
• Electronic night day filter
• White lighting up to 18 meters
• Minimum illumination: 0.001 lux F1.0 (color), 0.0001 lux F1.0 (B/W)
• 6mm fixed optics
• Viewing angle: 57.01 ° (H), 29.21 ° (V), 66.32 ° (D)
• White balance automatic, indoor, manual, regional, natural, lamppost


Motorized camera

• SDT5A405WA-4F-B
• 1/1.8” 4 MP CMOS sensor
• Digital resolution: 4MP (2688x1520), 1080P (1920x1080), 1.3MP (1280x960), 720P (1280x720), D1 (704x576), CIF (352x288)
• Stream 1: 4MP, 1080P, 1.3MP, 720P (1 ~ 25 fps)
• Stream 2: D1, CIF (1 ~ 25 fps)
• Stream 3: 1080P, 1.3MP, 720P, D1, CIF (1 ~ 25 fps)
• Removable mechanical filter
• Infrared lighting up to 100 meters
• Minimum illumination: 0.001 lux F1.35 (color), 0.0001 lux F1.35 (B/W)
• 5X optical zoom: 10 ~ 50 mm motorized optics
• Viewing angle: 45.73 ° ~ 9.99 ° (H), 26.43 ° ~ 5.68 ° (V), 51.55 ° ~ 11.48 ° (D)
• Autofocus, semi-automatic and manual control
• Horizontal Positioner: 0 ° ~ 250 °
• Vertical positioner: -25 ° ~ 90 °
• Manual speed: 0.1 ° ~ 335 ° / sec. (H), 0.1 ° ~ 137 ° / sec. (V)
• Preset speed: 335 ° / sec. (H), 137 ° / sec. (V)
• 300 presets
• 5 patterns, 8 rounds (up to 32 presets per round), 5 scans
• DH-SD and Pelco-D / P protocols (automatic recognition)
• Auto white balance, indoor, outdoor, tracking, manual, sodium lamp, natural light, lamppost


General

• SDT5A405WA-4F-B
• Gain Control: Automatic, Manual
• Backlight Compensation (BLC, HLC)
• WDR 120dB
• 2D / 3D-DNR digital noise reduction
• Video sensor
• ROI zones
• Digital Image Stabilizer (EIS)
• Supports defog
• 16X digital zoom
• Artificial intelligence:

  • SDT5A405WA-4F-B
  • Facial recognition
    Autotracking
  • Metadata: Supports the capture of images and the extraction of attributes from the human body, the human face, motor vehicles and non-motorized vehicles
  • Perimeter protection: Line crossing detection, intrusion detection (supports alarm with classification of people / vehicles), filtering of false alarms caused by animals, leaf creaks, bright lights, etc.
• IVS Intelligence:

  • SDT5A405WA-4F-B
  • Event shooting: Video sensor, video masking, scene changes, network disconnection, IP conflict, unauthorized access, storage anomalies
  • General Intelligence: Abandoned / Lost Items
• Audio: 1 input / 1 output
• Alarm: 2 inputs / 1 output
• Network interface: RJ45 (10/100 Base-T)
• Network protocols: IPv4, IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMPv1 / v2c / v3 (MIB-2), DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, ARP, RTCP
• Compatible with ONVIF (Profile S&G), CGI
• Unicast / Multicast streaming method
• Up to 20 users
• Remote viewing through IE7, Chrome42, Firefox52 and Safari browsers
• MicroSD card slot up to 256GB (card not included)
• Power: 24V AC, 3A
• Consumption: 18W, 33W with heater and IR lighting activated
• Supports Hi-PoE
• IP66 protection degree
• Operating temperature of -40 ° C ~ + 70 ° C
• Relative humidity: <95%
• Dimensions: 175 (W) x 261 (H) x 346 mm
• Weight: 6.4 kg
