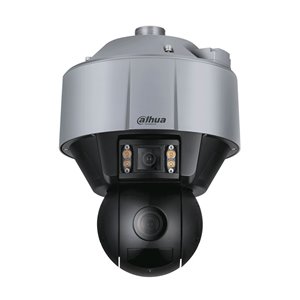

Sdt5x405-4f-wa - 120 ° / s starlight ip motorisiert ...

Features

    1 / 1.8 ”4-megapixel panoramic and detail CMOS sensor
    Compression formats H.265 + / H.265 / H.264 + / H.264 / MJPEG
    Resolution: 4MP (2688x1520), 4MP (2560x1440), 1080P (1920x1080), 1.3MP (1280x960), 720P (1280x720), D1 (704x576), CIF (352x288)
    Stream 1: 4MP / 1080P / 1.3MP / 720P (1 ~ 25 ips)
    Stream 2: D1, CIF (1 ~ 25 ips)
    Stream 3: 1080P / 1.3MP / 720P / CIF (1 ~ 25 ips)
    Day / night mode with removable mechanical filter
    Night vision panoramic camera: 4 white light LEDs, 20 meters range with facial recognition, 30 meters range with video metadata
    Night vision camera detail: 4 IR LEDs, up to 100 meters
    Panoramic Minimum Illumination: 0.0005 lux F1.0 (color) / 0.0001 lux F1.0 (B / W)
    Minimum detail illumination: 0.001 lux F1.3 (color) / 0.0001 lux F1.3 (B / W) / 0 lux (IR On)
    6mm panoramic lens
    Panoramic Angle of View: 57 ° (H), 31 ° (V), 66 ° (D)
    10 ~ 50mm detail optics (5X optical zoom)
    Viewing angle for details: 45 ° ~ 10 ° (H), 26 ° ~ 5.7 ° (V), 51 ° ~ 11.5 ° (D)
    Automatic, semi-automatic and manual focus control
    16X digital zoom
    White Balance: Auto / Indoor / Outdoor / Tracking / Manual / Sodium Lamp / Natural Light / Street Lamp
    Automatic and manual gain control
    Backlight compensation (BLC, HLC)
    True WDR (120 dB)
    Ultra DNR noise reduction (2D / 3D)
    Defog, Electronic Image Stabilizer (EIS)
    Areas of interest (ROI)
    Video sensor
    Autotracking with deep-learning
    Facial recognition
    Perimeter protection: Line crossing detection, intrusion detection (supports person / vehicle classification alarm), filtering false alarms caused by animals, leaf rustling, bright lights, etc.
    Metadata: Supports image capture and attributes of human body, human face, motorized and non-motorized vehicle and attribute extraction
    Pan horizontal positioner: 0 ° ~ 360 ° continuous
    Pan vertical positioner: 0 ° ~ 30 °
    Horizontal positioner details: 0 ° ~ 250 °
    Vertical positioner details: -10 ° ~ 90 °
    Panoramic manual speed: 0.1 ° ~ 100 ° / sec. (H), 0.1 ° ~ 25 ° / sec. (V)
    Manual speed details: 0.1 ° ~ 120 ° / sec. (H), 0.1 ° ~ 50 ° / sec. (V)
    Pan preset speed: 100 ° / sec. (H), 50 ° / sec. (V)
    Preset details speed: 360 ° / sec. (H), 200 ° / sec. (V)
    300 presets DH-SD, Pelco-D / P (automatic recognition)
    5 patterns, 8 rounds of up to 32 presets each, 5 scans
    1 audio input / 1 output
    2 inputs / 1 alarm output
    MicroSD card slot up to 128GB (card not included)
    Network interface: RJ45 (10/100 Base-T)
    Network protocols: IPv4 / IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, ARP, SNMPv1 / v2c / v3 (MIB-2), RTCP
    ONVIF (Profile S / G / T) compliant, CGI
    Unicast / Multicast streaming method
    Up to 20 users
    Compatible with IE7, Chrome 45, Firefox 52 and Safari 12 browsers
    Management software SmartPSS, DSS
    Power supply: 36 V DC / 2.23A (± 25%)
    Consumption: 21W, 40W (with IR illumination + white light activated and intelligent video)
    Supports Hi-PoE
    -40 ° C ~ + 70 ° C operating temperature
    Humidity: <95%
    Degree of protection IP67
    Lightning-proof 8KV
    Dimensions: Ø277 x 385 mm
    Weight: 9 kg
    Includes wall bracket and power supply
