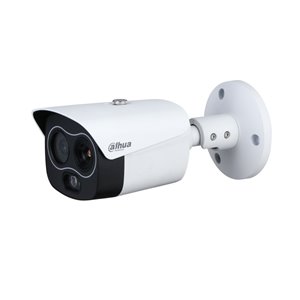

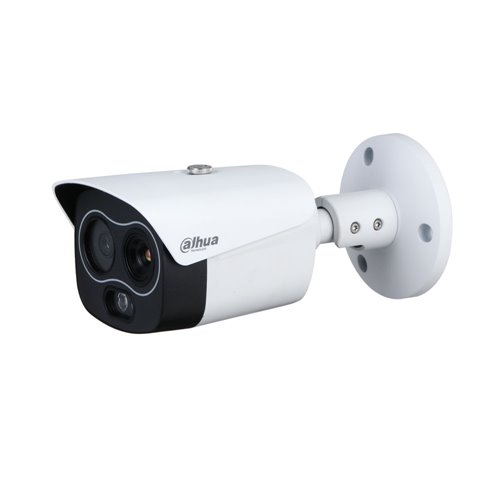

TPC-BF1241P-D3F4-WIFI - Thermisches + sichtbares WLAN-Bullet-Kamer ...

Features

    256x192 Uncooled VOx Thermal Sensor Technology
    Focus-free athermalized lens (thermal camera)
    4 megapixel 1 / 2.7 "CMOS sensor (viewable camera)
    WiFi connectivity
    Supports ROI, video sensor, color palettes
    Smoker detection and call behavior
    Supports fire detection and alarm
    3.5mm focal length (thermal camera)
    1 alarm input / 1 output
    MicroSD slot
    Degree of protection IP67
    Supports PoE
    Smart link with strobe and audio
    Dual image fusion (visible and thermal images)

Specs

    Focal plane sensor not cooled with vanadium oxide
    Effective pixels: 256 x 192
    Pixel size: 12 µm
    Thermal sensitivity (NETD): <50mK
    Spectrum range: 8 ~ 14 µm
    Focal length (thermal): 3.5mm
    Viewing Angle (Thermal): 50.6 ° (H), 37.8 ° (V)
    Effective distance in people (1.8 m x 0.5 m):
        Detection: 146 meters
        Reconnaissance: 38 meters
        Identification: 19 meters
    Effective distance in vehicles (4m x 1.4m):
        Detection: 389 meters
        Reconnaissance: 97 meters
        Identification: 49 meters
    16X digital zoom
    Digital detail enhancement
    Automatic and manual gain control
    2D and 3D noise reduction
    18 color palettes
    3 blending modes: warm color, cool color, iron red
    Image Sensor (Visible Camera) 1 / 2.7 4 Megapixel CMOS
    Effective pixels: 2336 x 1752
    Infrared illumination of ≥30 meters
    Minimum illumination: 0.05 lux (color) / 0.005 lux (B / W) / 0 lux IR On
    Focal Length (Visible Optics): 4mm
    Viewing Angle (Visible Optics): 84 ° (H), 45 ° (V), 99 ° (D)
    Removable mechanical filter
    White Balance: Auto, Manual, Indoor, Outdoor, Tracking, Street Light, Natural
    Automatic and manual gain control
    Backlight compensation (BLC, HLC)
    Digital WDR
    2D-NR and 3D-NR noise reduction
    Supports ROI
    Exposure compensator
    Video compression H.265, H.264, MJPEG
    Visible camera resolution: 4MP (2336x1752), 1080P (1920x1080), 1.3MP (1280x960), 720P (1280x720), XVGA (1024x768), VGA (640x480), D1 (704x576), CIF (352x288), 256x192
    Thermal Stream 1: 1.3MP (default), XVGA, VGA, 256x192 (1 ~ 25 ips)
    Thermal Stream 2: VGA (default), 256x192 (1 ~ 25 ips)
    Viewable Stream 1: 4MP (default), 1080P, 720P, D1 (1 ~ 25 ips)
    Stream 2 visible: 720P, D1, CIF (default) (1 ~ 25 ips)
    IVS detection: Line crossing detection, intrusion detection
    ADVANCED detection functions: Fire and alarm detection, Hot and cold spot trace, People and vehicle classification, Smoker detection, Call detection
    G.711A, G.711Mu, AAC and PCM audio compression
    1 audio input / 1 output
    1 alarm input / 1 output
    1 RS485 port
    WiFi 802.11, 2.4GHz, 150Mbps
    Ethernet: RJ-45 (10/100 Base-T)
    Network protocols: HTTPS, HTTP, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4 / v6, SNMP, QoS, UPnP, NTP
    ONVIF and CGI compatible
    Up to 10 users
    Compatible with IE8, Chrome42, Firefox42 browsers
    MicroSD card slot up to 256GB (card not included)
    Power supply: 12V DC (± 20%)
    Consumption: 8W ~ 14W
    Supports PoE (802.3af)
    -30 ° C ~ + 60 ° C operating temperature
    Relative humidity: <95%
    Lightning-proof 6KV
    Degree of protection IP67
    Metal shell
    Dimensions: 90.4 (W) x 90.4 (H) x 194.6 mm
    Weight: 900g

Note: The effective distance values ??shown are nominal values ??and should be used as an estimate. Check with your sales representative for the recommended detection distances with our Vaelsys Perimeter System.
