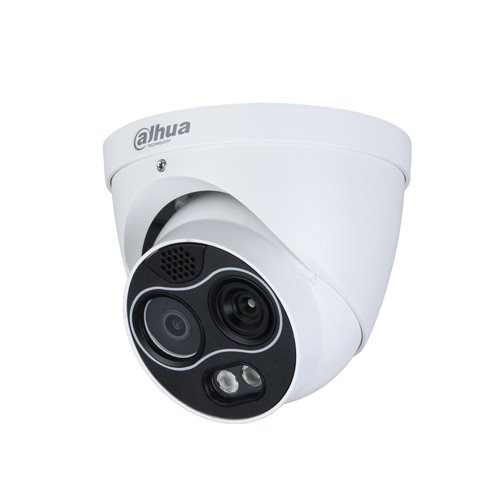

TPC-DF1241-D2F2 - Wärmekuppel + sichtbar mit IR leuchtet ...

Characteristics

• TPC-DF1241-D2F2
•     256x192 Uncooled VOx Thermal Sensor Technology
•     Focus-free athermalized lens (thermal camera)
•     4 megapixel 1 / 2.7 "CMOS sensor (viewable camera)
•     Supports ROI, video sensor, color palettes
•     Smoker detection and call behavior
•     Supports fire detection and alarm
•     2mm focal length (thermal camera)
•     1 alarm input / 1 output
•     MicroSD slot
•     Degree of protection IP67
•     Supports PoE
•     Smart link with strobe and audio
•     Dual image fusion (visible and thermal images)

  Specs
•     Focal plane sensor not cooled with vanadium oxide
•     Effective pixels: 256 x 192
•     Pixel size: 12 µm
•     Thermal sensitivity (NETD): <50mK
•     Spectrum range: 8 ~ 14 µm
•     Focal length (thermal): 2mm
•     Viewing Angle (Thermal): 87.8 ° (H), 63.8 ° (V)
•     Effective distance in people (1.8 m x 0.5 m):
          Detection: 83 meters
          Reconnaissance: 21 meters
          Identification: 11 meters
•     Effective distance in vehicles (4m x 1.4m):
          Detection: 222 meters
          Reconnaissance: 55 meters
          Identification: 27 meters
•     16X digital zoom
•     Digital detail enhancement
•     Automatic and manual gain control
•     2D and 3D noise reduction
•     18 color palettes
•     3 blending modes: warm color, cool color, iron red
•     Image Sensor (Visible Camera) 1 / 2.7 4 Megapixel CMOS
•     Effective pixels: 2336 x 1752
•     Infrared illumination of ≥30 meters
•     Minimum illumination: 0.05 lux (color) / 0.005 lux (B / W) / 0 lux IR On
•     Focal Length (Visible Optics): 2mm
•     Viewing Angle (Visible Optics): 94 ° (H), 72 ° (V), 116 ° (D)
•     Removable mechanical filter
•     White Balance: Auto, Manual, Indoor, Outdoor, Tracking, Street Light, Natural
•     Automatic and manual gain control
•     Backlight compensation (BLC, HLC)
•     Digital WDR
•     2D-NR and 3D-NR noise reduction
•     Supports ROI
•     Exposure compensator
•     Video compression H.265, H.264, MJPEG
•     Visible camera resolution: 4MP (2336x1752), 1080P (1920x1080), 1.3MP (1280x960), 720P (1280x720), XVGA (1024x768), VGA (640x480), D1 (704x576), CIF (352x288), 256x192
•     Thermal Stream 1: 1.3MP (default), XVGA, VGA, 256x192 (1 ~ 25 ips)
•     Thermal Stream 2: VGA (default), 256x192 (1 ~ 25 ips)
•     Viewable Stream 1: 4MP (default), 1080P, 720P, D1 (1 ~ 25 ips)
•     Stream 2 visible: 720P, D1, CIF (default) (1 ~ 25 ips)
•     IVS detection: Line crossing detection, intrusion detection
•     ADVANCED detection functions: Fire and alarm detection, Hot and cold spot trace, People and vehicle classification, Smoker detection, Call detection
•     G.711A, G.711Mu, AAC and PCM audio compression
•     1 audio input / 1 output
•     1 alarm input / 1 output
•     1 RS485 port
•     Ethernet: RJ-45 (10 / 100M)
•     Network protocols: HTTPS, HTTP, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4 / v6, SNMP, QoS, UPnP, NTP
•     ONVIF and CGI compatible
•     Up to 10 users
•     Compatible with IE8, Chrome42, Firefox42 browsers
•     MicroSD card slot up to 256GB (card not included)
•     Power supply: 12V DC (± 20%)
•     Consumption: 6.5W ~ 13W
•     Supports PoE (802.3af)
•     -30 ° C ~ + 60 ° C operating temperature
•     Relative humidity: <95%
•     Lightning-proof 6KV
•     Degree of protection IP67
•     Metal shell
•     Dimensions: Ø122 x 113.5 mm
•     Weight: 850g

Note: The effective distance values ??shown are nominal values ??and should be used as an estimate. Check with your sales representative for the recommended detection distances with our Vaelsys Perimeter System.
