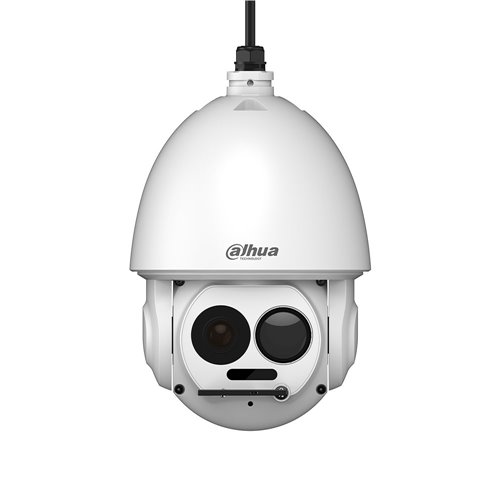

TPC-SD8421-TB7Z45 - PTZ Thermal + sichtbar Dahua 200 ° / ...

Features

• TPC-SD8421-TB7Z45
• 400x300 Uncooled VOx Thermal Sensor Technology
• Focus-free, thermal lens (thermal camera)
• 1 / 2.8 "2-megapixel CMOS sensor (visible camera)
• 45X optical zoom
• Fire / smoke detection and alarm
• 7.5mm focal length (thermal camera)
• Preset speed up to 140 ° / s, continuous 360 ° horizontal positioner
• Up to 300 presets, 5 auto scans, 5 patterns
• 7 inputs / 2 alarm outputs
• MicroSD slot
• Protection degree IP66

Thermal camera

• TPC-SD8421-TB7Z45
• Focal plane sensor not cooled with vanadium oxide
• Effective Pixels: 400 x 300
• Pixel size: 17 µm
• Thermal sensitivity (NETD): <40mK
• Spectrum range: 8 ~ 14 µm
• Focal length (thermal): 7.5 mm
• Viewing angle (thermal): 53.7 ° (H), 39.7 ° (V)
• Effective distance in people (1.8m x 0.5m):
• Detection: 221 meters
• Recognition: 57 meters
• Identification: 28 meters
• Effective distance in vehicles (4m x 1.4m):
• Detection: 558 meters
• Recognition: 147 meters
• Identification: 74 meters
• Digital enhancement of details
• Electronic Image Stabilizer
• Automatic and manual gain control
• 2D / 3D noise reduction
• 18 color palettes
• Thermal Stream 1: 1280x1024, 1.3MP, 720P, 400x300 (25 ips)
• Thermal Stream 2: 640x512, 640x480, 400x300 (25 ips)
• Supports up to 12 simultaneous measurement rules (12 points, 12 lines, 12 regions)
• Low temperature range: -20 ° C ~ + 150 ° C
• High temperature range: 0 ° C ~ + 550 ° C
• Temperature accuracy: ± 2 ° C, ± 2% / operating temperature -20 ° C ~ + 60 ° C

Visible camera

• TPC-SD8421-TB7Z45
• 1 / 2.8 "2-megapixel CMOS sensor
• Effective Pixels: 1920 x 1080
• 100 meter infrared illumination
• Minimum illumination: 0.005 lux F1.6 (color) / 0.0005 lux F1.6 (B / W
• 45X optical zoom: 3.95 ~ 177.7mm
• Viewing angle: 65.66 ° ~ 1.88 ° (H), 29.4 ° ~ 1.09 ° (V), 73.1 ° ~ 1.13 ° (D)
• Automatic, semi-automatic and manual focus control
• 16X digital zoom
• Removable mechanical filter
• White Balance: Automatic, Manual, Indoor, Outdoor, Tracking, Sodium Lamp,
• Lamppost, Natural
• Automatic and manual gain control
• Backlight compensation (BLC, HLC)
• WDR
• 2D-NR and 3D-NR noise reduction
• Digital Image Stabilizer
• Exposure compensation
• ROI
• Video sensor and privacy masks
• H.265, H.264, MJPEG video compression
• Visible camera resolution: 1080P (1920x1080), 720P (1280x720), D1 (704x576)
• Stream 1 visible: 1080P, 720P, D1 (25 ips)
• Stream 2 visible: D1, CIF (25 ips)
• IVS detection: Line crossing detection, intrusion detection
• Advanced detection functions: Fire detection and alarm, hot / cold spot tracking, people/ vehicle classification, Autotracking

Positioner

• TPC-SD8421-TB7Z45
• Horizontal positioner: 0 ° ~ 360 ° continuous
• Vertical positioner: -10 ° ~ 90 °
• Manual speed: 0.1 ° ~ 200 ° / sec. (H), 0.1 ° ~ 120 ° / sec. (V)
• Preset speed: 0.1 ° ~ 240 ° / sec. (H), 0.1 ° ~ 200 ° / sec. (V)
• 300 presets
• 5 patterns, 8 rounds, 5 Auto Scan, Auto Pan

General

• TPC-SD8421-TB7Z45
• G.711a, G.711mu, AAC and PCM audio compression
• 1 audio input / 1 output
• BNC video output
• 7 inputs / 2 alarm outputs
• 1 RS485 port
• Ethernet: RJ-45 (10/100 Base-T)
• Network protocols: HTTP, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4 / v6, SNMP, QoS, UPnP, NTP
• Compatible with Onvif, CGI, SDK Dahua
• Up to 20 users
• Compatible IE, Chrome, Firefox, Safari browsers
• Compatible with Android and iOS mobile devices
• MicroSD card slot up to 256GB (card not included)
• Power: 24V AC, 5A (± 15%)
• Consumption: 17W ~ 38W
• Storage temperature of -50 ° C ~ + 70 ° C
• -40 ° C ~ + 60 ° C operating temperature
• Relative humidity: <95%
• Lightning-proof 6KV
• Protection degree IP66
• Metal shell
• Dimensions: Ø240 x 357 mm
• Weight: <8 Kg
• Includes wall bracket and power supply

Note: The effective distance values ??shown are nominal values ??and should be used as an estimate. Check with your sales representative to find out the recommended detection distances with our Vaelsys perimeter system.
