Vim-12M180-Dahua - Dahua Residential Optex 2 Kit COMPO ...

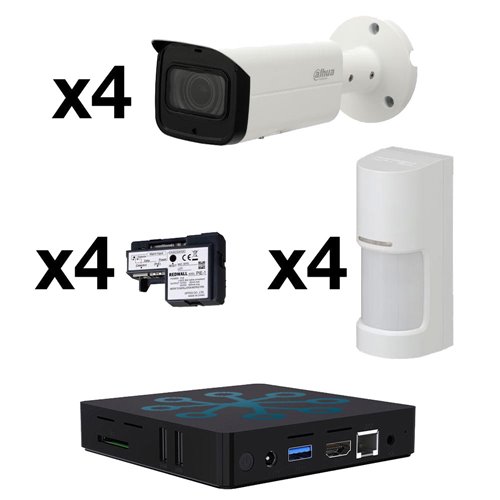

Residential OPTEX Kit 2 DAHUA composed of:

    1x SEV-0004483 (VIM-X4):
        Sensor-generated event video integration module
        Access via mobile application
        Includes 4 video channels for verification (sensors)
        32GB integrated disk
        Unlimited shipping protocols

    4x OPTEX-155 (WXI-ST):
        WX Infinity Series 180 ° Panoramic PIR Detector for Outdoors
        Adjustable range up to 12m, 180 °
        Independent left and right side detection
        SMDA ADVANCED Processing Logic
        14 pairs of horizontal detection zones and 2 vertical layers
        Left / right detection range adjustable in 5 levels
        Sensitivity adjustable in 3 levels
        Alarm output left, right and tamper output against tampering
        IP55

    4x OPTEX-134 (FOOT-1):
        Encoder that converts analog relay outputs to original ASCII code (Redwall event code)
        Now you can connect to all leading VMS platforms to control IP cameras
        PoE (IEEE802.3 af) compliant by enabling power supply via a PoE switch or hub
        Only one LAN cable is needed to connect the PIE-1 to a PoE switch or hub
        Alarm output: Redwall Event Code (UDP / TCP)
        Power input: PoE (802.3af / at)

    4x DAHUA-1987-FO (IPC-HFW2231T-ZS-S2):
        PRO Starlight series IP bullet camera
        60 meter IR illumination
        1 / 2.8 ”CMOS, 2 megapixels
        H.265 / H.264 / MJPEG
        Dual stream
        Resolution up to 2MP
        2.7 ~ 13.5mm motorized lens (H: 109 ° ~ 28 °, V: 57 ° ~ 16 °)
        ICR filter
        OSD, AWB, AGC, real WDR 120dB, 3D-DNR, ROI, video sensor and privacy masks, mirror mode
        MicroSD slot
        Onvif
        IP67, Lightning-proof 2KV
        3AXIS support
        12V DC
