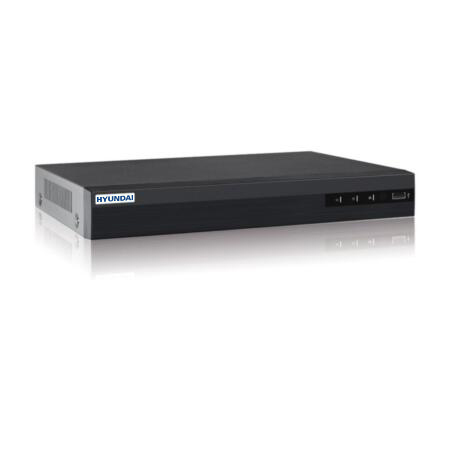

ZVR5216M-POC - 16-Kanal 5 in 1 ZVR HDCVI / HDTVI / A ...

SKU: ZVR5216M-POC

inkl. MwSt€482,90

Sales price €482,90

excl. MwSt €386,32

Total discount:

MwSt: €96,58

16 Kanal 5 in 1 ZVR HDCVI / HDTVI / AHD / CVBS + 2 IP-Kanäle. H.265 + / H265 / H.264 + / H264. 2 Wege Audio. 16 Kanalwiedergabe 1080p. Aufnahme 3MP (Kanäle 1 bis 4, 15 FPS, nur TVI), 4MP (2 IP-Eingänge), 1080p (15 fps), 1080N, 720p, 960h, d1 / 4CIF, VGA, CIF, QVGA, QCIF (25 fps). BNC-Ausgang bei D1 / 4CIF. HDMI-Ausgang bei 4K und VGA bei 1080p. 2 HDD-SATA-Kapazität. RJ45 Gigabit. Onvif, P2P, DDNs. 2 USB, 1 RS485. DC48V. Kompatibel mit POC-Kameras.

Wenig auf Lager

geh zurück

Produkt-Beschreibung: ZVR5216M-POC

Beschreibung

- 16 channel 5 in 1 ZVR, H.265+/H265/H.264+/H.264
- 5 technologies: IP, HDCVI, HDTVI, AHD and CVBS
- PoC (Power Over Coaxial) for HD-TVI compatible cameras (up to 200 meters)
- TVI mode: 3.0 version (not compatible with v1.0)
- H.265+ compression format (reduction of 70% coding efficiency and video storage)
- 16 BNC input (coaxitron supported):
• HDCVI: 1080P/720P (telemetry control via HD-CVI coaxial cable)
• HDTVI: 3MP (channels 1 to 4) / 1080P / 720P (only on v3.0 cameras, not compatible with v1.0)
• AHD: 1080P/720P
• CVBS : 960H
- 2 IP inputs up to 4MP
- VGA output (1920x1080) and HDMI (3840x2160) with configurable spot
- BNC auxiliary output up to 704x576
- 2 way audio: 1 RCA in / 1 RCA out
- Display resolution: 1080P, 1080N (960x1080), 720P, 960H, D1/4CIF, VGA, CIF, QVGA, QCIF
- Recording resolution: 3MP (channels 1 to 4, only TVI), 4MP (only IP), 1080P, 1080N (960x1080), 720P, 960H, D1/4CIF, VGA, CIF, QVGA, QCIF
- Stream 1 on 3MP mode:
• Stream at 3MP: 3MP (15 fps)
- Stream 1 on 1080P mode:
• Stream at 1080P: 1080P, 720P (15 fps), 960H, D1/4CIF, VGA, CIF (25/30 fps)
• Stream at 720P: 720P, 960H, D1/4CIF, VGA, CIF (25/30 fps)
- Stream 1 on 1080N mode:
- 3MP (15 fps), 1080N, 720P lite, 960H, D1/4CIF, VGA, CIF (25/30 fps)
- Stream 2: 960H, D1/4CIF (12 fps), CIF (25/30 fps)
- 16 channel simultaneous playback 1080P
- Multi-camera inverted playback
- Up to x256 playback speed (forward and backward)
- 2 HDD SATA up to 6TB (not included)
- Soporta modo de cuota de disco duro; permite asignar capacidades diferentes a canales diferentes
- GUI and one touch recording (Wizard)
- Diagnosys manual of video quality
- Search and playback by tags
- Log files locking and unlocking
- Network interface: Ethernet RJ45 (10/100/1000M) auto-adaptive
- Network protocols: TCP/IP, PPPoE, DHCP, P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS
- Compatible with ONVIF
- Remote access up to 128 users
- Remote access via iPhone/iPad, Android
- Multi browser compatibility: Chrome, Firefox, Safari, IE
- P2P, DDNS DEMES, Push and zero channel
- Connection: 1 USB 2.0, 1 USB 3.0, 1 RS485 half-duplex
- Power supply: 48V DC
- Consumption: ≤120W
- Working temperature: -10°C ~ +55°C
- RH: 10~90%
- Dimensions: 380 x 320 x 48 mm (desktop)
- Weight: ≤2 kg
