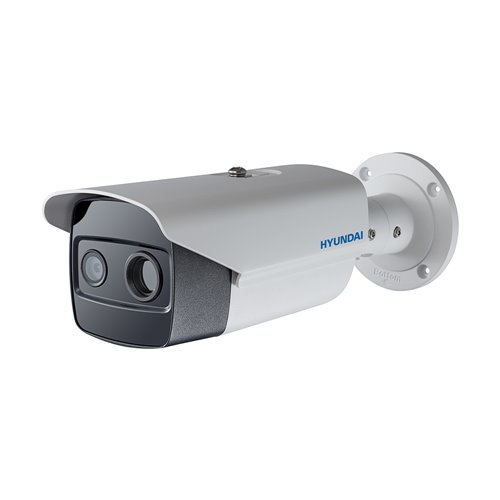

HYU-747 - Hyundai NextGen Thermal Bullet + VI ...

SKU: HYU-747

inkl. MwSt€4424,68

Sales price €4424,68

excl. MwSt €3539,75

Total discount:

MwSt: €884,94

Hyundai NextGen Thermische Kugel + sichtbare Kamera Thermalzeilenserie mit IR von 40 m, für draußen. Sichtbare Kamera mit 1 / 2,8 "CMOS mit 2 MP. 8 mm sichtbares Objektiv. Wärmekamera mit Auflösung 384 x 288, 15 mm Thermalobjektiv. Erkennung von Menschen bis 441 Meter und Fahrzeuge bis 1353 Meter. Digital WDR, 3D-DNR . Intelligente Erkennung (VCA). IP / Analog-Videoausgang. Audio: 1 Eingabe / 1 Ausgang. Alarm: 2 Eingänge / 2 Ausgänge. Microsd Slot Onvif, API, Isapi. Blitzsicher 6kV. IP66 24V AC, 12V DC. Poe +.

+20 noch auf Lager

geh zurück

Produkt-Beschreibung: HYU-747

Beschreibung

Thermal camera

HYU-747
FPA sensor (focal plane matrices) not cooled with vanadium oxide
384x288 thermal resolution
Pixel Interval: 17μm
Thermal sensitivity (NETD): <40 mk (@ 25 ° C, f / 1.0)
Spectrum range: 8 μm ~ 14 μm
Focal length (thermal): 15 mm
Viewing angle (thermal): 24.2 ° x 18.4 °
Minimum focusing distance of 2.5 meters
Effective distance in people: Detection (441 m), recognition (110 m), identification (55 m)
Effective distance in vehicles: Detection (1353 m), recognition (338 m), identification (169 m)
15 adjustable color palettes, 3D-DNR
Image detail enhancement
Supports 4 types of VCA rules (intrusion, line crossing, region input and region output), maximum 8 rules
Temperature range from -20 ° C ~ + 150 ° C
Temperature accuracy of ± 8 ° C
Supports 3 types of temperature measurement rules, 21 rules (10 points, 10 regions and 1 line)
Supports 10 fire detection points

Visible camera

HYU-747
Image sensor (visible camera) CMOS 1 / 2.8 Progressive Scan 2 megapixels
Effective pixels: 1920 x 1080
40 meter infrared lighting
Minimum illumination: 0.002 lux F1.5 (color) / 0.0002 lux F1.5 (B / W) / 0 lux IR On
Focal length (visible optics): 8 mm
Viewing angle (visible optics): 40 ° x 22.4 °
Removable mechanical filter
Digital WDR
Supports merging of bi-spectrum images, image preview in image and image change

IP communication and integration

HYU-747
Compression formats: H.265 + / H.265 / H.264 / H.264 + / MJPEG (baseline / main / high profile)
Stream 1 thermal camera: 384x288 at 50 fps
Stream 2 thermal camera: 384x288 at 50 fps
Stream 1 visible camera: 1080P / 1.3MP / 720P at 25 fps
Stream 2 visible camera: D1 / CIF / QCIF at 25 fps
Audio compression: G.711u / G.711a / G.722.1 / MP2L2 / G.726 / PCM
1 RJ45 10 / 100M auto-adaptive port
Protocols: IPv4 / IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP,
RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Up to 20 simultaneous visualizations
Up to 32 users, 3 levels: administrator, operator, user
Compatibility API, ONVIF, API, ISAPI, and third-party management gateway
Compatible with IE9 +, Chrome31-44, Firefox30-51, Safari5.02 + (Mac) browsers
2 inputs / 2 alarm outputs
1 input / 1 audio output
Reset button
MicroSD / SDHC / SDXC card slot (up to 128 GB), with support for manual or alarm recording
BNC output 1.0V [p-p] / 75Ω (PAL / NTSC)

Electric and environmental

HYU-747
Power supply: 24V AC, 12V DC, PoE + (802.3at, class 4)
Consumption: max. 20W
Operating temperature of -40 ° C ~ + 60 ° C
Relative humidity: ≤90% (without condensation)
IP66 protection degree
6KV lightning-proof

Physical characteristics

HYU-747
Metal housing
Dimensions: 93 (W) x 93 (H) x 314 mm
Weight: 1.55 kg
Wall mount included

Note: The actual distance values ??shown are nominal values ??and should be used as an estimate. Check with your salesperson for the recommended detection distances with our Vaelsys perimeter system.
