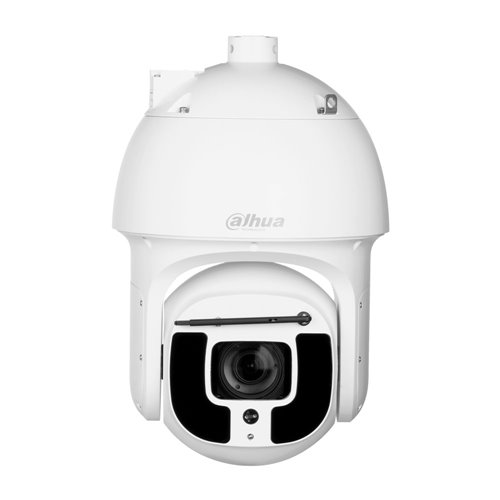

SD8A440WA-HNF - Starlight IP Motorisierte Kuppel der ...

Features

• SD8A440WA-HNF
• STARVIS ™ 1 / 1.8 ”CMOS sensor 4 megapixel
• Powerful 40X optical zoom
• Starlight technology
• Infrared range of up to 500 meters
• Supports facial recognition
• Autotracking and perimeter protection based on deep learning
• Metadata support
• Supports Hi-PoE
• It has smart lens cleaner
• Degree of protection IP67


Specifications

• SD8A440WA-HNF
• 1 / 1.8 ”Sony® STARVIS ™ 4-megapixel CMOS sensor
• Compression formats H.265 + / H.265 / H.264 + / H.264 / MJPEG
• Digital resolution: 4MP (2592x1520), 3MP (2048x1536), 1080P (1920x1080), 1.3MP (1280x960), 720P (1280x720), D1 (704x576), CIF (352x288)
• Stream 1: 4MP, 3MP, 1080P, 1.3MP, 720P (1 ~ 25 fps)
• Stream 2: D1, CIF (1 ~ 25 fps)
• Stream 3: 1080P, 1.3MP, 720P (1 ~ 25 fps)
• Day / night mode with removable mechanical filter
• Infrared lighting up to 500 meters
• Minimum illumination: 0.001 lux F1.4 (color) / 0.0001 lux F1.4 (B / N), 0 lux IR On
• 40X optical zoom: 5.6 ~ 223 mm
• Viewing angle: 63.9 ° ~ 2 ° (H), 36 ° ~ 1.3 ° (V), 68.18 ° ~ 2.62 ° (D)
• Auto and manual focus control
• Automatic and manual iris control
• 16X digital zoom
• White balance: Auto, ATW, Indoor, Outdoor, Manual
• Automatic and manual gain control
• Backlight Compensation (BLC, HLC)
• Real WDR (120 dB)
• 2D and 3D noise reduction
• Defog, EIS, ROI
• Video sensor
• 24 privacy masks
• Artificial intelligence:
  - Autotracking
  - Facial recognition
  - Perimeter protection: Line crossing detection, intrusion detection (supports alarm with classification of people / vehicles), filtering of false alarms caused by animals, leaf creaks, bright lights, etc.
  - Metadata: Supports image capture and attributes of human body, human face, motorized and non-motorized vehicle and attribute extraction
• IVS Intelligence:
  - Event shooting: Video sensor, video masking, scene changes, network disconnection, IP conflict, unauthorized access, storage anomalies
  - General Intelligence: Abandoned / Lost Items
• Horizontal positioner: 0 ° ~ 360 ° continuous
• Vertical positioner: -30 ° ~ 90 °, autoflip 180 °
• Manual speed: 0.1 ° ~ 200 ° / sec. (H), 0.1 ° ~ 100 ° / sec. (V)
• Preset speed: 200 ° / sec. (H), 120 ° / sec. (V)
• 300 DH-SD, Pelco-D / P presets (automatic recognition)
• 5 patterns, 8 rounds (up to 32 presets per round), Auto Pan, 5 Auto Scan
• RS485 port
• BNC video output
• 1 input / 1 audio output
• 7 inputs / 2 alarm outputs
• MicroSD card slot up to 256GB (card not included)
• Network interface: RJ45 (10/100 Base-T / TX)
• Network protocols: IPv4 / IPv6, HTTP, HTTPS, SSL, TCP / IP, UDP, UPnP, ICMP, IGMP, SNMPv1 / v2c / v3 (MIB-2), ARP, RTCP, RTSP, RTP, SMTP, NTP, DHCP , DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
• Compatible with ONVIF S / G, API
• Unicast / Multicast streaming method
• Up to 20 users
• Remote viewing with IE, Chrome, Firefox, Safari browsers
• Smart PSS, DSS, DMSS management software
• Compatible with iOS and Android smartphone
• Power supply: 24V AC / 3A (26W, 42W with heating and IR lighting activated)
• Supports Hi-PoE
• Operating temperature of -40 ° C ~ + 70 ° C
• Humidity: <95%
• Degree of protection IP67
• Lightning-proof 8KV
• It incorporates lens cleaner
• Metal housing
• Dimensions: Ø262 x 415.6 (H) mm
• Weight: 8.5 kg
• Includes wall bracket and power supply
