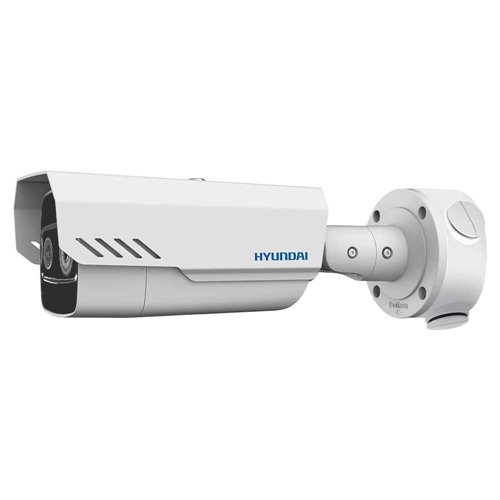

Thermalkamera - HYU-555

Thermal camera
- FPA sensor (focal-plane array) uncooled vanadium oxide
- Thermal resolution: 160x120
- Pixel interval:25µm
- Thermal sensibility (NETD): <50 mk (@25°C, f/1.0)
- Spectral range: 8 µm ~ 14 µm
-Focal distance (thermal):7 mm
-Viewing angle (thermal): 33,9° x 25°
- Minimum focal distance: 0,8meters
- Effective distance on people: Detection (140 m), recognition (35 m), ID (18 m)
- Effective distance on vehicles: Detection (429 m),recognition (107 m),ID (54 m)
- 15 adjustable color palettes, 3D-DNR
- Dynamic improvement of details
- VCA rules supported (intrusion, tripwire, entry/exit region), 8rules maximum
-Temperature range -20°C ~ +150°C
- Temperature accuracy ±8°C
- Supports 3 types of temperature measurement rules, 21 rules (10 points, 10 regions and 1 line)
- 10 fire detection points supported

Visible camera
-Image sensor (visible camera) 1/2,8" Progressive Scan CMOS sensor, 2MP
- Effective pixels: 1920 x 1080
-IR illumination:30meters
- Minimum illumination: 0,002 lux F1.5 (color) / 0,0002 lux F1.5 (B/W) / 0 lux IR On
- Focal distance (visible lens):6 mm
- Viewing angle (visible lens): 52,8°x30°
- Removable mechanical filter
- Digital WDR
- Supports fusion of bi-spectrum images, preview of image in image and change of image

IP communication and integration
- H.264/MJPEG/H.264+ (baseline/main/high profile)
- Stream 1 (thermal camera): 160x120 (50 fps)
- Stream 2 (thermal camera): 160x120 (50 fps)
- Stream 1 (visible camera): 1080P/1,3MP/720P (25 fps)
- Stream2 (visible camera): D1/CIF/QCIF (25 fps)
- G.711u/G.711a/G.722.1/MP2L2/G.726/PCM
- 1x RJ45 10/100M auto-adaptive
- Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
-Up to 20simultaneous playbacks
-Up to32 users, 3 levels: admin, operator,user
-Compatibility: API, ONVIF, PSIA, ISAPI, and third-party management gateway
- Compatible with IE7+, Chrome18+, Firefox5.0+, Safari5.02+
- Alarm: 2 in / 2 out
- Audio: 1 in / 1 out
-Reset button
- MicroSD/SDHC/SDXC (up to 128 GB), with manual recording or by alarm
- BNC 1.0V [p-p] / 75O (PAL/NTSC)

Electrical and environmental
- Power supply: 24V AC, 12V DC, PoE+
-Working temperature -40°C ~+60°C
- RH: =90% (without condensation)
- IP67
- Lightning-proof of 6KV

Physichal features
-Metal case
- Dimensions: 314 x 104 x 292,7 mm
- Weight:1,55 kg
- Wall bracket and tube base included

Note: The effective distance values shown are nominal values and should be used as an estimate.Ask your sales representative for the recommended detection distances with our Vaelsys perimeter system.
