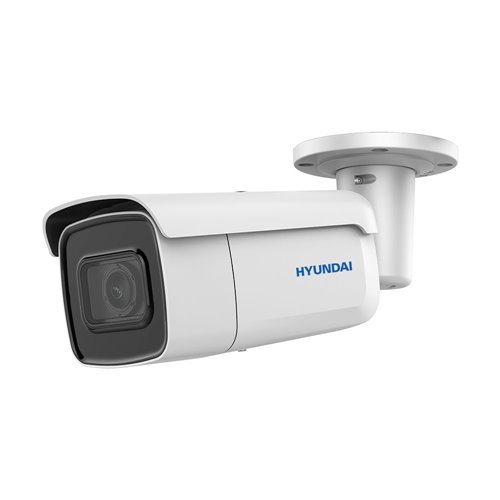

Bis zu 1080p bei 25 fps - HYU-666

Aisense series
Aisense is able to differentiate, with great precision, a human body and a vehicle on a stage with a large number of objects. Not only can it detect human and vehicle intrusion, it can also filter out false alarms that could have been triggered by moving objects that do not pose a threat.

Features

• HYU-666
• Up to 1080P at 25 fps
• 2,8~12 mm motor lens
• H.265+, H.265, H.264+, H.264
• WDR 120dB, BLC, 3D-DNR, ROI
• False alarm filter via target classification (AIsense)
• IR illumination up to 50 meters
• MicroSD up to 128GB (card is not included)
• IP67
• IK10
• PoE+ supported

Specs

• HYU-666
• 1/2,8" CMOS sensor, 2MP
• Digital resolution: 1080P (1920x1080), 1,3MP (1280x960), 720P (1280x720), etc.
• H.265+/H.265/H.264+/H.264/MJPEG
• Stream 1: 1080P, 1,3MP, 720P (25 ips)
• Stream 2: 640x480,640x360, 320x240 (25 ips)
• Day/night mode with removable mechanical filter
• IR illumination: 50meters
• Minimum illumination: 0,007 lux F1.4 color(AGC On)
• 2,8 ~ 12 mm motor lens
• Viewing angle: 113°~32°(H), 59°~18°(V), 137°~37°(D)
• Automatic focus mode
• OSD menu
• White balance
• AGC
• BLC
• WDR true 120dB
• 3D digital noise reduction
• 1 fixed ROI stream 1 and stream2
• Adjustment of brightness, saturation, contrast, sharpness, gain control and white balance via client software and web browser
• Smart functions: Detection of line crossing, intrusion detection, detection of entry or exit to region, false alarm filter by objective classification
• Audio: 1 in / 1 out
• Ambient noise filter
• Alarm: 1 in / 1 out
• Reset button
• MicroSD/SDHC/SDXCup to128GB (card is not included)
• Network interface: RJ45 (10/100 Base-T)
• Network protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
• Compatiblewith ONVIF (Profile S, G), ISAPI
• Plug&Play with NVR NEXTGEN
• Compatible with DDNS DEMES
• Power supply: 12V DC
• Consumption: 1,3A, max. 15,5W
• PoE 802.3at, Class4
• Working temperature-30°C ~ +60°C
• RH: 95% (without condensation)
• IP67
• IK10
• Metal case
• Dimensions:Ø105 x 297,5 (L) mm
• Weight:1,4kg
• 3AXIS: 0°~355°(PAN), 0°~90°(TILT), 0°~355°(Rotation)
• Power supply is not included
