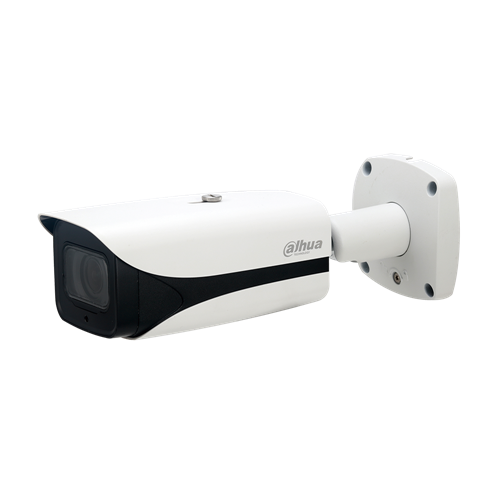

1/2,8 "CMOS SENSOR - 2 MP - IPC-HFW8241E-Z5

Features

• IPC-HFW8241E-Z5
• 1/2,8" CMOS sensor, 2 MP
• H.265/H.264 with triple streaming
• 1080P at 50/60 fps
• WDR 140dB, ICR filter, 3D-NR, AWB, AGC, BLC
• Remote multiple monitoring: web display, CMS (DSS/PSS) and DMSS
• 7 ~ 35 mm motorized lens
• MicroSD slot, PoE+
• Smart IR up to 100m

Specs

• IPC-HFW8241E-Z5
• 1/2,8” Sony® CMOS sensor, 2 MP
• H.265+ / H.265 / H.264+ / H.264 / MJPEG
• Digital resolution: 1080P (1920x1080), 1,3MP (1280x960), 720P (1280x720), D1 (704x576), VGA (640x480)
• Stream 1: 1080P (1~50 fps)
• Stream 2: D1 (1~50 fps)
• Stream 3: 1080P (1~19 fps)
• Day/night mode with removable mechanical filter
• Smart IR: 4ledarray,100 m
• 0,006 lux F1.4 (color, 1/3s, 30IRE), 0,05 lux F1.4 (color, 1/30s, 30IRE), 0 lux F1.4 IR On
• 7 ~ 35mm motor lens
• Viewing angle: 34,45°~10,68°(H); 19,75°~5,99°(V)
• 16X digital zoom
• Auto/manual white balance
• Auto/manual gain control
• BLC, HLC
• Real WDR 140dB, SSA
• 3D digital noise reduction
• EIS
• 4 ROI
• Motion detection: 4 rectangular zones
• Privacy mask:4 rectangular zones
• Mirror mode, Defog
• People counter: by tripwire, region, marauder filter
• IVS: Tripwire, intrusion (with people and vehicle classification)
• BNC video output (only for adjustments)
• Audio: 1 in / 1 out
• Alarm_ 2 in / 1 out
• RS485 port
• Network interface: RJ45 (100/1000 Base-T)
• Network protocols: HTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP,FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP,NTP, Bonjour, IEEE 802.1x, Multicast, ICMP, IGMP, SNMP, TLS
• Compatiblewith ONVIF (Profile S/G), API
• Unicast / Multicast streaming method
• Up to 10/20users
• Remote display via IE, Chrome, Firefox and Safari
• Management software: Smart PSS, DSS, DMSS
• Compatible with IOS and Android
• MicroSD card slot up to 128GB (card is not included)
• Power supply: 12V DC
• Consumption: 3,7W (12,7W with IR ON)
• PoE+ supported (802.3 at, Class4)
• PoE consumption: 4,4W (14,3W with IR ON)
• IP67
• IK10
• Working temperature:-30°C ~ +60°C
• RH: <95%
• Metal case
• Dimensions: 273,2 x 95 x 96,4 mm
• Weight:960 g
• 3AXIS: 0°~360°(PAN), 0°~90°(TILT), 0°~360°(Rotation)
• Power supply is not included
