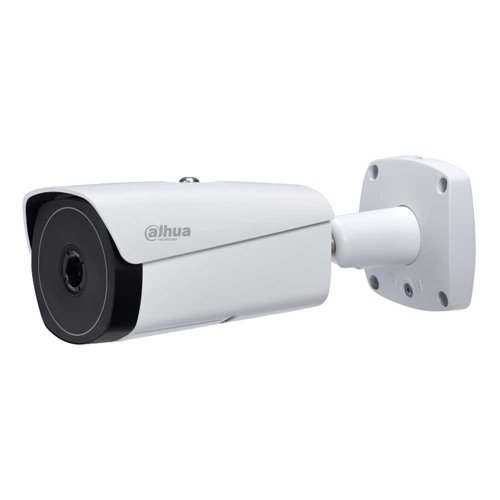

Cooled Vox-Mikrobolometer - TPC-BF5300-7

- Uncooled VOx Microbolometer
- Effective pixels: 336 x 256
- Pixel size: 17 um
- Thermal sensitivity: < 40mK @ f/1.0
- Spectrum range: 7 ~14 um
- Focal distance: 7,5 mm
- Viewing angle: 45° x 35°
- Effective distance on people (1,8 m x 0,5 m): Detection (200 m), recognition(50 m), ID(30 m)
- Effective distance on vehicles (2,3m x 2,3m): Detection (600 m), recognition(150 m), ID(60 m)
- 16X digital zoom
- 14 Color palettes (Whitehot / Blackhot / Ironrow / Icefire / Fusion / Rainbow / Globow / Iconbow1 / Iconbow2, etc.)
- ROI
-Motion detection
- H.264 / M-JPEG
- Stream 1: SXGA (1~25/30 fps), 720P (1~25/30 fps)
- Stream 2:640x360 (1 ~ 25/30 fps), 640x512 (1~25/30 fps)
- Video output: IP / Analog (optional HDCVI)
- Smart detection: Tripwire, intrusion, object detection (People and vehicle), heat and alarm detection
- G.711a / G.711u (8K 16 BIT)
- Audio interface: 1input channel
- Alarm: 2 in/ 1out
- Ethernet: RJ-45 (10/100 Base-T)
- Protocols:IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
- Compatible with Onvif, PSIA, CGI
- Storage: MicroSD (max. 128 GB, card is not included)
- Power supply: 24V CA / 12V CC / PoE
- Consumption: 6W
- Working temperature: -40°C ~+60°C (95% HR)
- IP66
- Dimensions: 270 x 103 x 97 mm
- Weight: 1,37 Kg
