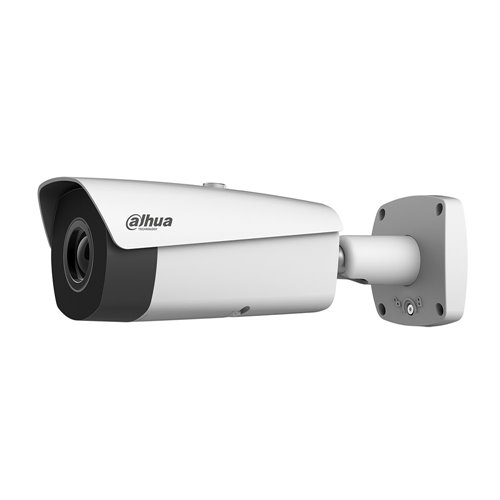

VOX-unkühlte thermische Sensor-Technologie - TPC-BF5300-T-A35

- VOx uncooled thermal sensor technology
- Effective pixels: 336 x 256
- Pixel size: 17 um
- Thermal sensitivity: < 40mK @ f/1.0
- Spectral range: 7 ~14 um
- Focal distance: 35mm
- Viewing angle: 9,3° x 7,1°
- Effective distance on people (1,8 m x 0,5 m): Detection (1150 m), recognition(280 m), ID(140 m)
- Effective distance on vehicles (2,3m x 2,3m): Detection (3000 m), recognition(800 m), ID(200 m)
- Temperature measurement: low gain-40°C~+550°C; high gain-40°C~+160°C
- Measurement accuracy: ±2°C, ±2%
- Measurement modes: point, line or area
- 8 presets per point , 1 line preset, 8 area presets, up to 8 simultaneous presetssupported
- 16X digital zoom
- 14 color palettes(Whitehot/Blackhot/Ironrow/Icefire/Fusion/Rainbow/Globow/Iconbow1/Iconbow2, etc.)
- ROI: 4 zones
- Motion detection:4 zones
- Privacy mask: 4 zones
- H.264 / M-JPEG
- Stream 1: 1280x1024 (30 fps), 720P (30 fps)
- Stream 2: 640x512 (15 fps), 320x256 (1~25/30 fps)
- Video output: IP / Analog / HDCVI
- Smart detection: Tripwire, intrusion, object detection (person and vehicle), abandoned/lost object, heat and alarm detection
- G.711a / G.711Mu/ AAC
- Audio interface: 1input channel
- Alarm: 2 in / 1 out
- Ethernet: RJ-45 (10/100 Base-T)
- Protocols: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
- Compatible with Onvif, PSIA, CGI
- Storage: MicroSD (128 GB max, card is not included)
- Power supply: 24V AC / 12V DC / PoE
- Consumption: 7W
- Working temperature: -40°C ~+60°C (95% HR)
- Grado de protección IP67
- Dimensions: 291 x 103 x 97 mm
- Weight: 1,37 Kg
