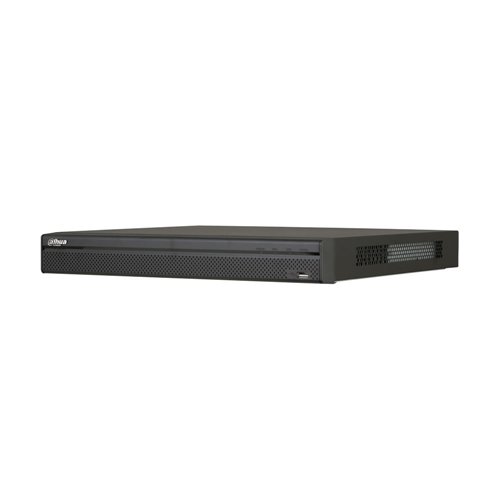

Quad-Core-Prozessor - NVR5216-16P-4KS2E

Features
- Quad-core processor
- LINUX OS
- Smart H.265+/H.265/Smart H.264+/H.264/MJPEG
-16 IP camera inputs
- HDMI (4K) and VGA (1080P)
- 2 way audio: 1 RCA in / 1 RCA out
- Output division:1, 4, 8, 9, 16
- Display resolution: 4K (3840x2160), 1080P (1920x1080), SXGA (1280x1024), 720P (1280x720), XGA (1024x768)
- Recording resolution: 12MP (4000x3000), 4K/8MP (3840x2160), 6MP (3072x2048), 5MP (2560x1920), 4MP (2560x1440), 3MP (2048x1536), 1080P (1920x1080), 1,3MP (1280x960), 720P (1280x720), etc.
- Recording speed: 320Mbps
- Bitrate per channel: 16 Kbps ~ 20 Mbps
- Motion detection: 22x18 selectable grid, detection by video loss and masking detección
- Playback: 16 channels
- Decoding/playback capacity:2ch 12MP@20fps, 4ch 8MP@25fps, 5ch 6MP@25fps, 6ch 5MP@25fps, 8ch 4MP@20fps, 11ch 3MP@25fps, 16ch 1080P@25fps
- Playback/display on thermal cameras supported
- Alarm: 4 in / 2 out
- Internal storage:2 SATA III, up to 10TB per port (HDD is not included)
- ePoE technology simplifies network structureof long range surveillance projects, eliminating the need of repeater network devices
- EoC technology allows you to update existing analog systems to HD IP by coaxial
- IVS: analisys/detection of objects in movement, abandoned or lost. Tripwire
- Heat map and people counter supported
- Facieal detection
- POS
- Fisheye dewarping modes
- LPR Automatic recognition of license plates for the management of entrances / exits
- Recognition of license plates, import / export of black / white lists, search results of recorded video
- ANR technology: In case of network failure the images are registered in the SD card of the IP camera, which are transferred to the NVR once the network is restored
- VQD
- 1x RJ45 (10/100/1000M)
-16x PoE+(IEEE802.3at/af),8 supports ePoE and EoC
- Network protocols: HTTP, HTTPs, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, Filtro IP, PPPoE, DDNS, FTP, alarm server, IP search (IP Dahua, DVR, NVS, etc.)
- ONVIFVersion2.4
- Remote access up to 128users
- 1x USB 2.0, 1x USB 3.0, 1x RS485, 1x RS232
- Local network and internet server access
- Se puedecontrolaren remoto mediante teclado Joystick conectado por RS485 y/o TCP/IP
- Independent motion detection configuration by camera
- Compatible with 3D positioning function (compatible PTZ domes)
- Software and hardware watchdog
-Watermark
- Limit user access to cameras on local /remote mode
- masking areas, alarm by video loss/blank
- Multilenguaje on screen menu
- Display, configuration and remote control by TCP/IP with client programmmandInternet Explorer browser (Firefox and Chrome compatibility)
- Email sended with attached picture
- Sending to programmed or alarmed FTP
- Display on iPhone, iPad y Android
- Fixed or dynamic IP via Dyndns service, NoIP, DDNS Evolution, etc.
- Power supply: 100V ~ 240V AC,50 ~ 60 Hz
- NVR consumption: <15W (without discs)
- PoE consumption:25,5W per port with limi of 130W in total
- Working temperature: -10°C ~ +55°C
- RH: 0~90%
- Dimensions:375 x 326,5 x53 mm (1U)
- Weight: 2,7 kg (without HDD)
