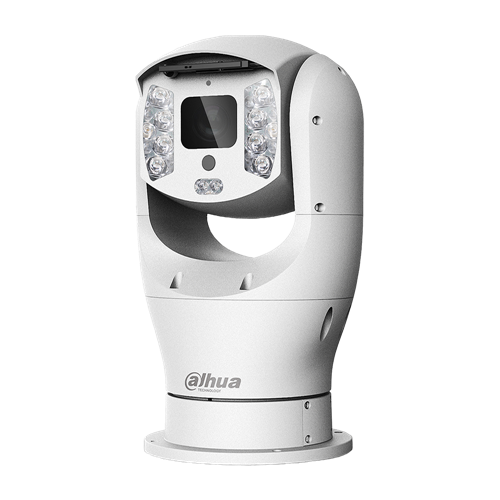

1/2,8 "Sony® Starvis ™ CMOS-Sensor - 2 MP - PTZ19245U-IRB-N

Features

• PTZ19245U-IRB-N
• 1/2,8" Sony® STARVIS™ CMOS sensor, 2 MP
• 45X optical zoom
• StarLight technology
• Codificación H.265
• 1080Pat 50frames per second
• IR illumination up to 350 m
• NEMA 4X, IP68, Hi-PoE

Specs

• PTZ19245U-IRB-N
• 1/2,8” Sony® STARVIS™ CMOS sensor, 2 MP
• H.265+ / H.265 / H.264+ / H.264
• Maximum resolution: 1080P (1920x1080), 1,3MP (1280x960), 720P (1280x720), D1 (704x576), CIF (352x288)
• Stream 1: 1080P, 1,3MP, 720P (1~50 fps)
• Stream 2: D1, CIF (1~25 fps)
• Stream 3: 1080P, 1,3MP, 720P, D1,CIF (1~25 fps)
• Day/night mode with removable mechanical filter
• IR illumination:8 led (high power), up to 350meters
• 0,005lux F1.6 (color) / 0,0005 lux F1.6 (B/W) / 0 lux F1.6 (IR On)
• 45X optical zoom: 3,95 ~177,7 mm
• Viewing angle: 70,3° ~ 1,8°(H)
• Auto/manual focus control
• 16X digital zoom
• White balance:Auto, ATW, Indoor, Outdoor, Manual
• Auto/manual gain control
• Backlight compensation (BLC, HLC)
• WDR true (120 dB)
• Ultra DNR (2D/3D)
• Defog
• EIS
• ROI
• Motion detection
• 24privacy mask
• IVS: Tripwire, intrusion, abandoned/lost object detection
• Facial detection, heat map
• Autotacking
• Horizontal positioner: 0° ~ 360° continuous
• Vertical positioner: 0° ~ 360° continuous (effective angle -55° ~ 223°)
• Manual speed: 0,1° ~ 120°/sec. (H), 0,1° ~ 60°/sec. (V)
• Preset speed: 120°/sec. (H), 60°/sec. (V)
• 300 DH-SD presets
• 5 patterns, 8 rounds, Auto Pan, Auto Scan
• Protocols: DH-SD and Pelco-D/P with automatic recognition
• 1 RS485
• BNC video output
• Audio: 1 in / 1out
• Alarm: 7 in /2out
• MicroSD card slot up to 256GB (card is not included)
• Network interface: RJ45 (10Base-T/100Base-TX)
• Network protocols: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP filter, QoS, Bonjour, 802.1x
• Compatiblewith ONVIF(Profile S/G), API
• Unicast/Multicast streaming method
• Up to 20users
• Remote display via web browser: IE, Chrome, Firefox and Safari
• Smart PSS, DSS, DMSS management software
• Compatible with IOS and Android
• Power supply: 24V AC /5A (±25%)
• Consumption: 25W, 40W with IR IR and 80W with IR and heater
• Hi-PoE supported
• Hi-PoE consumption: 25W, 40Wwith IR illumination
• Working temperature:24V AC -50°C ~ +70°C
• Hi-PoE working temperature: -40°C ~ +70°C
• RH: <95%
• IP68
• Lightning-proof 8KV
• Smart lens cleaner activated by rain sensor
• Metal case
• Dimensions:Ø234 x205 x 405,5 mm
• Weight:9,8 kg
• Power supply included
