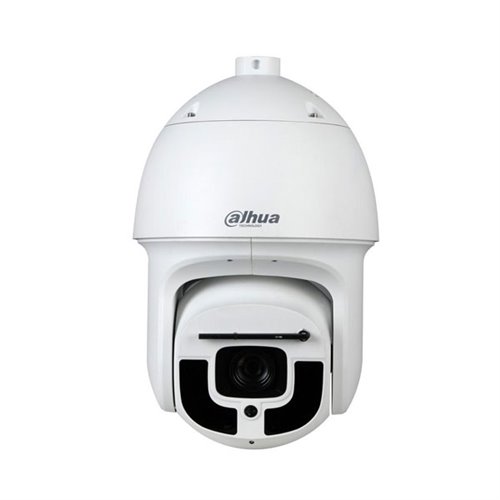

1/1,9 "CMOS-Sensor, 2MP - SD10A248V-HNI

- 1/1,9” CMOS sensor, 2MP
- Digital resolution: 1080P (1920x1080), 1,3MP (1280x960), 720P (1280x720) D1 (704x576), CIF (352×288)
- Stream 1: 1080P, 1,3MP, 720P(1~50 fps)
- Sub stream 1: D1, CIF (1~25 fps)
- Sub stream 2: 1080P, 1,3MP, 720P (1~25 fps)
- Day/night mode with removable mechanical filter
- Ir illumination: 10 led, up to 450meters
- Minimum illumination: 0,001 lux F1.4 color / 0 lux F1.2 IR On
- BNC video output (1v p-p /75 Ohms, PAL/NTSC)
- 48X optical zoom: 5,7 ~ 275mm
- Viewing angleH: 64,55°~1,5°
- 16X digital zoom
- White balance:Auto, ATW, indoor, outdoor, manual
- Auto/manual gain control
- Backlight compensation (BLC, HLC)
- Real WDR 120dB
- 2D and 3D noise reduction
- ROI, defog, EIS
-Motion detection
- 24privacy mask
- Autotracking
- IVS: tripwire, intrusion detection, abandoned/missing objects,facial detection
- Horizontal positioner: 0° ~ 360° continuous
- Vertical positioner: -30° ~ 90°, autoflip 180°
- Speed: 0,1° ~ 200°/sec. (H), 0,1° ~ 120°/sec. (V)
- Preset speed: 240°/sec. (H), 200°/sec. (V)
- 300 presets
- 5 patterns, 8 rounds, Pan, Autoscan
- Protocols: DH-SD, Pelco-P/D (automatic recognition)
- RS485 port
- Audio: 1 in / 1out
- Alarm: 7 in/ 2out
- Network interface: RJ45 (10/100 Base-T)
- Network protocols: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
- Compatible withONVIF, PSIA, CGI
- Up to 20users
- MicroSD slot up to 128GB (card not included)
- Power supply: 24V AC /3A (24W, 38W with IR ON)
- Hi-PoE
- Intelligent lens cleaner with rain sensor
- Working temperature:-40°C ~ +70°C
- RH: <90%
- IP67
- Dimensions:Ø300 x 527mm
- Weight: 13kg
