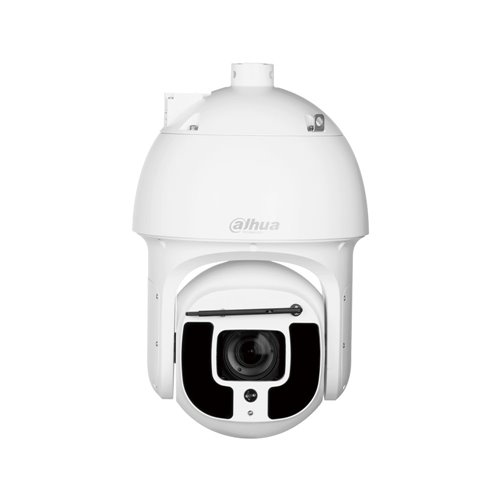

1/1.9 "CMOS SENSOR - 2 MP - SD8A240VI-HNI

Specs
- 1/1,9” CMOS sensor, 2 MP
- H.265+ / H.265 / H.264+ / H.264
- Mazimum resolution: 1080P (1920x1080), 1,3MP (1280x960), 720P (1280x720), D1 (704x576), CIF (352x288)
- Stream 1:1080P, 1,3MP, 720P(1~50 fps)
- Stream 2: D1, CIF (1~25 fps)
- Stream 3: 1080P, 1,3MP, 720P (1~25 fps)
- Day/night mode with removable mechanical filter
- IR illumination: 10 led, up to 450meters
- 0,001 lux F1.4 (color) / 0,0001 lux F1.4 (B/W) / 0 lux F1.4 (IR On)
- 40X optical zoom:5,6 ~ 223 mm
- Viewing angle: 60,6° ~ 1,8°
- Auto/manual focus control
- 16X digital zoom
- BNC video output
- White balance:Auto, ATW, Indoor, Outdoor, Manual
- Auto/manual gain control
- Backlight compensation (BLC, HLC)
- Real WDR (120 dB)
- Ultra DNR (2D/3D)
- Defog, EIS
- ROI
-Motion detection
- 24privacy mask
-Autotracking
- IVS: Tripwire, intrusion, abandoned/lost object, facial detection, heat map
- Horizontal positioner: 0° ~ 360° continuous
- Vertical positioner: -30° ~ 90°, autoflip 180°
- Manual speed: 0,1° ~ 240°/sec. (H), 0,1° ~ 100°/sec. (V)
- Preset speed: 240°/sec. (H), 120°/sec. (V)
- 300 presets DH-SD,Pelco-D/P (automatic recognition)
- RS485
- 5 patterns, 8 rounds, Auto Pan, Auto Scan
- Audio: 1 in / 1 out
- Alarm: 7 in / 2 out
- MicroSD card slot up to 256GB (card is not included)
- Network interface: RJ45 (10/100 Base-T/TX)
- Network protocol: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP filter, QoS, Bonjour, 802.1x
- Compatiblewith ONVIF(Profile S/G), API
- Unicast/Multicast streaming method
- Up to 20users
- Power supply: 24V AC /3A (±25%)
- Consumption: 26W, 38W (with IR illumination and heater ON)
- Hi-PoE supported
-Working temperature -40°C ~ +70°C
- RH: <95%
- IP67
- Lightning-proof 8KV
-Metal case
- Intelligent lens cleaner incorporated
- Dimensions:Ø262 x415,6 mm
- Weight:8,5 kg
- Wall bracket and power supply included
