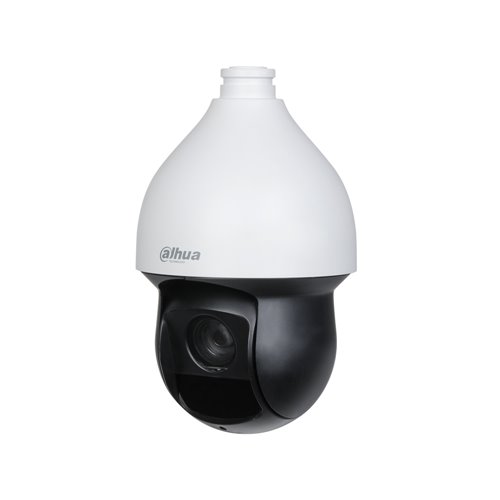

SD59232-HC-LA - 4 in 1 motorisierter Kuppel von 300 ° / se ...

SKU: SD59232-HC-LA

inkl. MwSt€938,07

Sales price €938,07

excl. MwSt €750,45

Total discount:

MwSt: €187,61

4 in 1 motorisierter Kuppel von 300 ° / s., Mit IR-Beleuchtung von 150 m für die draußen. 1/2,8 "" Sony® starvis t cmos, 2mp. Auflösung 1080p (25 IPS), 720p (25/50 IPS). 4 in 1 Ausgang (HDCVI / HDTVI / AHD / 960h). 32x optischer Zoom 4,5 ~ 144 mm (H: 60.14 ° ~ 2,75 °). 16x Digitalzoom. ICR-Filter. OSD, AWB, AGC, BLC, HLC, 120 dB Real WDR, 2D / 3D-DNR, 24 Datenschutzmasken. 300 Presets DH-SD, PELCO-D / P. 1 Audioeingang. 2 Eingänge / 1 Alarmausgabe. RS485. IP66. 24V DC. Inklusive Wandhalterung und Stromversorgung.

+20 noch auf Lager

geh zurück

Produkt-Beschreibung: SD59232-HC-LA

Beschreibung

HDTVI AHD CVBS

Features

SD59232-HC-LA
StarLight technology
1 / 2.8 "Sony® STARVIS ™ CMOS sensor, 2 megapixel
32X optical zoom
Up to 25/30 ips at 1080P, 25/30/50/60 ips at 720P
WDR 120dB, 3D-DNR
4-in-1 video output (HDCVI / HDTVI / AHD / CVBS)
Infrared illumination up to 150 meters
Degree of protection IP66

specs

SD59232-HC-LA
1 / 2.8 ”Sony® STARVIS ™ CMOS sensor, 2 megapixels
Digital resolution: 1080P (1920x1080), 720P (1280x720)
Pictures per second: 25/30 ips @ 1080P, 25/30/50/60 ips @ 720P
4 in 1 video output: HDCVI / HDTVI / AHD / CVBS
0.005 lux F1.6 (color) / 0.0005 lux F1.6 (B / W), 0 lux IR On
Removable mechanical filter
Infrared lighting: 4 LEDs, up to 150 meters
32X Optical Zoom: 4.5 ~ 144mm
Angle of view: 60.14 ° ~ 2.75 ° (H), 34.41 ° ~ 1.54 ° (V), 68.23 ° ~ 3.16 ° (D)
Automatic, semi-automatic and manual focus control
Automatic and manual iris control
16X digital zoom
White Balance: Auto, Indoor, Outdoor, Tracking, Manual, Sodium Lamp, Daylight, Street Light
Automatic and manual gain control
Backlight compensation (BLC, HLC)
True WDR 120 dB
2D / 3D digital noise reduction
Digital defog
24 zone privacy mask
Horizontal positioner: 0 ° ~ 360 °
Vertical positioner: -15 ° ~ 90 °, autoflip 180 °
Manual speed: 0.1 ° ~ 300 ° / sec. (H), 0.1 ° ~ 200 ° / sec. (V)
Preset speed: 400 ° / sec. (H), 300 ° / sec. (V)
300 presets
DH-SD and Pelco-D / P protocols (automatic recognition)
5 patterns, 8 rounds of up to 32 presets each, 5 scans
Adjustable speed
RS485 port (1200 ~ 9600 bps)
1 audio input
2 inputs / 1 alarm output
Power supply: 24V DC / 2.5A (± 25%)
Consumption: 9.6W, 22W with IR illumination
-40 ° C ~ + 70 ° C operating temperature
Relative humidity: <95%
Degree of protection IP66
Lightning-proof 6KV
Dimensions: Ø186 x 310 mm
Weight: 3.9 kg
Includes wall mount and power adapter
