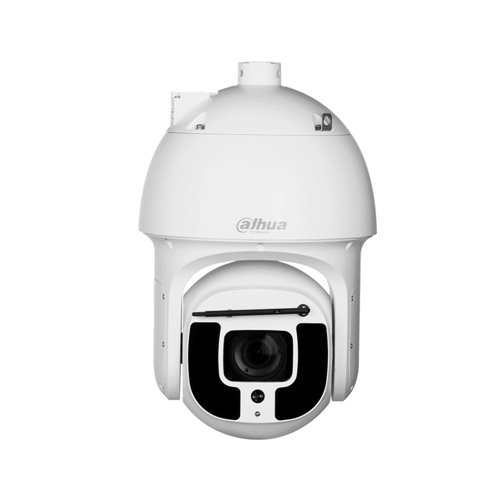

SD8A840-HNF-PA - Starlight IP DAHUA 240 ° / s ...

Specifications

1 / 1.8 ”8 megapixel CMOS sensor
Compression formats Smart H.265 +, H.265, Smart H.264 +, H.264 and MJPEG
Digital Resolution: 8MP / 4K (3840x2160), 4MP (2560x1440), 1080P (1920x1080), 1.3MP (1280x960), 720P (1280x720), D1 (704x576), CIF (352x288)
Stream 1: 8MP / 4K, 1080P, 1.3MP, 720P (1 ~ 25 ips)
Stream 2: D1, CIF (1 ~ 25 ips)
Stream 3: 1080P, 1.3MP, 720P (1 ~ 25 ips)
Day / night mode with removable mechanical filter
IR illumination up to 500 meters
0.005 lux F1.4 (color) / 0.0005 lux F1.4 (B / W), 0 lux IR On
40X Optical Zoom: 5.6 ~ 223mm
Viewing angle: 63.9 ° ~ 2 ° (H), 37.2 ° ~ 1.2 ° (V), 71.2 ° ~ 2.4 ° (D)
Automatic, semi-automatic and manual focus control
Automatic, manual and fixed iris control
16X digital zoom
Image Modes: BLC, HLC, WDR 140dB, 2D / 3D-NR, Optical Defog, Image Stabilizer
White balance with 8 modes
Automatic and manual gain control
Supports 4-zone, 4-region-of-interest (ROI) video sensor and 4-zone privacy mask
Intelligent Video Detection (IVS): Abandoned / Lost Object Detection
White Balance: Auto, Indoor, Outdoor, Tracking, Manual, Sodium Lamp, Natural Light, Street Light
Automatic and manual gain control
Supports video sensor, regions of interest (ROI), and 24-zone privacy mask
Intelligent Video Detection (IVS): Abandoned / Lost Object Detection
Artificial intelligence:
Perimeter Protection: Line Crossing Detection, Intrusion Detection (Supports Person / Vehicle Classification Alarm)
Supports autotracking
Supports video metadata with image capture and attribute extraction of human body, human face, motorized and non-motorized vehicles
Horizontal positioner: 0 ° ~ 360 ° continuous
Vertical positioner: -30 ° ~ 90 °, autoflip 180 °
Manual speed: 0.1 ° ~ 240 ° / sec. (H), 0.1 ° ~ 100 ° / sec. (V)
Preset speed: 240 ° / sec. (H), 120 ° / sec. (V)
300 presets DH-SD, Pelco-D / P (automatic recognition)
5 patterns, 8 rounds (up to 32 presets per round), 5 scans
1 BNC video output
1 audio input / 1 output
7 alarm inputs / 2 outputs
RS485 port
MicroSD card slot up to 256GB (card not included)
Network interface: RJ45 (10/100 Base-T)
Network protocols: IPv4, IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP v1 / v2c / v3 (MIB-2), DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP , ICMP, DHCP, PPPoE, ARP, RTCP, RTMP
ONVIF S / G / T compliant, CGI
Unicast / Multicast streaming method
Up to 20 users
Remote viewing with IE7 +, Chrome42, Firefox52, Safari browsers
Management software Smart PSS, DSS, DMSS, Easy4ip, IVSS
Compatible with IOS and Android smartphone
Power supply: 36V DC / 2.23A (± 25%)
Consumption: 30W (48W with IR illumination activated)
Supports Hi-PoE
-40 ° C ~ + 70 ° C operating temperature
Relative humidity: ≤95%
Degree of protection IP67
Lightning-proof 6KV
Metal housing
Dimensions: Ø262 x 415.2 (Al) mm
Weight: 8.5 kg
Includes wall bracket and power supply
