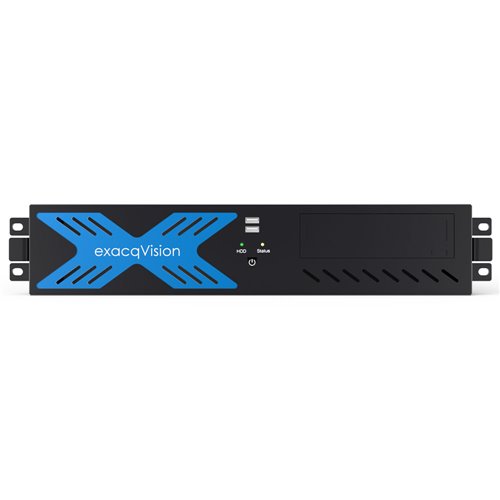

Aufnahme von bis zu 64 IP-Kameras pro NVR - IP04-16T-DTL-E

Description

Exacq Series A NVRs are professional level devices that adapt to a wide variety of applications: from stand-alone installations to deployments in enterprise environments. Both the integrated client and the free remote client allow the user to manage their system in addition to live and recorded video. For users who require the additional freedom to use a browser or an application for mobile phones, the NVR of the series A can be accessed from any web browser and from the free application Exacq Mobile, available for iOS and Android devices. Like all exacqVision recording solutions, the A series is very easy to configure, since the EasyConnect function incorporated to exacqVision finds, assigns and automatically directs the Illustra cameras and IP cameras of other IP brands in the network. Taking advantage of this function supposes a significant reduction of the time of installation and of the need to know in depth the IP protocol.

Features
- Recording of up to 64 IP cameras per NVR
- exacqVision Enterprise Edition software pre-installed and incorporate 4 IP camera licenses
- Transmission of live / recorded video to 100 PC clients simultaneously
- Protection against a single power cut with optional 4U redundant power supplies
- Continuous recording of up to 550 Mbps of video from a large number of high definition IP cameras
- Reduction of system startup time and failure risks thanks to an SSD unit for highly reliable operating system
- Optional NIC quad network cards to streamline the file or performance of a large number of customers
- Uninterrupted operation and video preservation in the event of a unit failure thanks to the optional 4U RAID5 devices
- Supervision of the hardware status in the exacqVision client with text or email notifications
- 3 year warranty and software updates

Specs
- Maximum number of IP cameras: 64
- IP Licenses included: 4
- Preloaded VMS software: Enterprise
- Typical video storage speed: 450 MB / s
- Local client image speed: 900 IPS in HD resolution, 1800 IPS in conventional resolution
- Maximum number of hard drives: 3
- Supplied storage capacity: 16TB
- Monitor output: DVI-I, HDMI, Display Port (maximum 2 simultaneous monitors)
- Operating system: Ubuntu Linux 14.04
- Location of the operating system: SSD hard disk
- CPU: Intel Core i3 4th generation
- RAM: 4GB
- Network cards: 2 cards of 1GB / s
- USB: 6 USB 2.0, 2 USB 3.0
- Audio: 1 audio output
- Peripherals included: Mouse and keyboard
- Operating temperature: + 4.5 ° C ~ + 35 ° C
- Dimensions: 547 x 426 x 89 mm
- Weight: 12.3 kg
- Regulations: CE, FCC, cULus, UL certification
