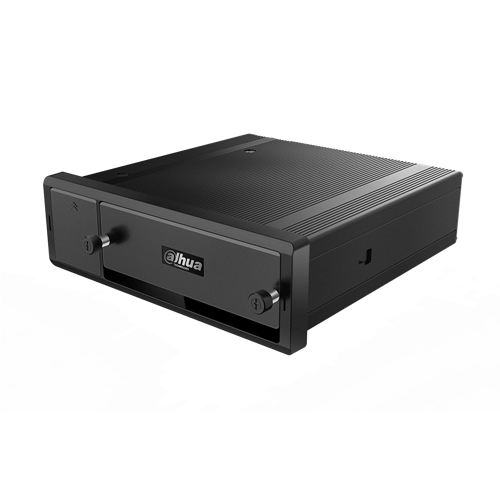

5 in 1 Special Mobile XVR für Fahrzeuge - MXVR4104

• MXVR4104
• Smart H.265: H.265+ improves coding efficiency up to 90% and reduce storage and video data costs
• Video format versatility: Connect a maxiimum of 4 analog cameras (CVI/TVI/AHD/CVBS) and 4 additional IP cameras
• Anti-vibration : Using shock-absorbing material and structure, the new designed hard disk box can cope with varying degrees of vibration, keeping the system work normally all the time.
• Wide range of power supply: As the voltage output of vehicle battery changes during driving, the wide range of power supply can Protect the device.

Features

• MXVR4104
• 5 in 1 special mobile XVR for vehicles up to 4 analog channels CVI/TVI/AHD/CVBS +4 IP channels (4MP)
• 5 technologies: IP, HDCVI, HDTVI, AHD and CVBS analog and automatic signal recognition
• Display and playback of all channels
• H.265, SmartH.265, H.264, Smart H.264
• 4 BNC inputs:
  • MXVR4104
  • HDCVI:1080P
  • HDTVI:1080P (without audio)
  • AHD:1080P (without audio)
  • CVBS:960H (NTSC/PAL)
• IP camera inputs:4 IP inputs at 4MP (added to BNC inputs)
• 2 way audio: 1 in / 1out
• 2 TV output and 1 VGA output (simultaneous)
• Display resolution 800x600
• Output division: 1, 4, 8, 9
• Privacy mask: 4 rectangular zones per camera
• Recording resolution: 1080P (1920x1080)
• Recording of 4 channels at 1080 (live)
• Recording modes: manual, calendar, video detection, alarm
• Recording intervals: 1~120 min (60 min default),pre-recording 1~30 sec.,post-recording 10~300 sec.
• Independent motion detection configuration by camera (22x18 selectable grid), detection by video loss and masking
• 9 alarm inputs (inputs 1 to 8 are local inputs, 9 is pulse input)
• 2alarm output (1relay output + 1x 12V output)
• 1channel playback
• Internal capacity for 1 HDD SATA (not included)
• SD card slot up to256GB (card is not included)
• Multilanguage display menu with newgraphic interface
• Network interfaceRJ45 (10/100Mbps) and 1 aviation connectorof 6 pins
• Network protocols: TCP/IP, UDP, DHCP, DDNS, FTP, Email,Alarm server
• Remote access up to 128users
• Compatible with iOS and Android
• 3x USB2.0
• 2x RS232
• 1x RS485
• Power supply range: 6V ~ 36V DC
• Consumption: <8,4W (without discs)
• Working temperature: -10°C ~ +70°C
• RH: 10%~90%
• Dimensions:180 (An) x60 (Al) x 190 (Prof) mm
• Net weight: 1,9 kg (without HDD)
• Certifies:FCC, EN50155 ISO7637-2 and ISO16750 BIS
