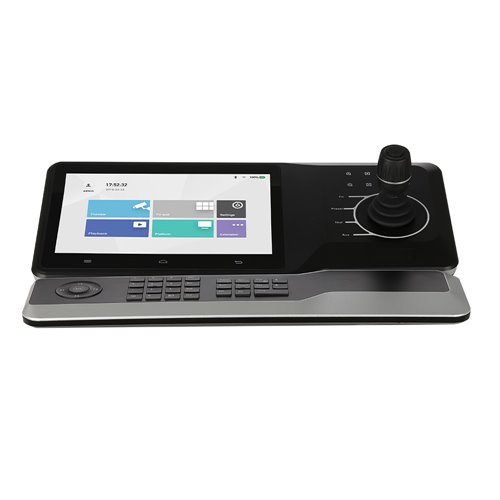

4-Achsen-Joystick (für PTZ-Funktionen) - NKB5000-F

- 4 AXIS Joystick (for PTZ functions)
- Allows control of: DVR, analog PTZ domes andIP, centralized managed platform, video network server
- H.265, H.264 and MPEG
- 4K live display supported
- 4 HDMI output
- Decoding capacity: 4 ch 12MP at 20 fps, 4 ch 4K at 30 fps, 6 ch 5MP at 30 fps, 8 ch 4MP at 30 fps, 10 ch 3MP at 30 fps, 16 ch 1080P at 30 fps
-Division:1/4/9/16
- Screenshot and USB recording supported
- Video wall control
- Control: preset position, auto scan, auto pan, automatic round and patterns
- Includes an extension keyboard module
- 10,1" LCD touchscreen (1280x800)
-2 way audio
- 3,5 mm audio jack connection
-Speaker incorporated
- Alarm: 4 in / 4 out
- 2x RS232
- 1x RS485 (PTZ control)
- 2x USB 3.0 + 2 USB 2.0
- 2x RJ45 Gigabit
- WiFi incorporated (2,4GHz)
- Power supply: 12V DC, 4A
- Consumption: 25W max, 18Wstandby
- Working temperature: -10°C ~ +55°C
- RH: 10%~95%
- Dimensions (without Joystick): 425 (W) x 194 (D) x 59 (H) mm
- Dimensions of keyboard module: 421 (W) x 105 (D) x 26 (H) mm
- Weight: 3,73 kg
