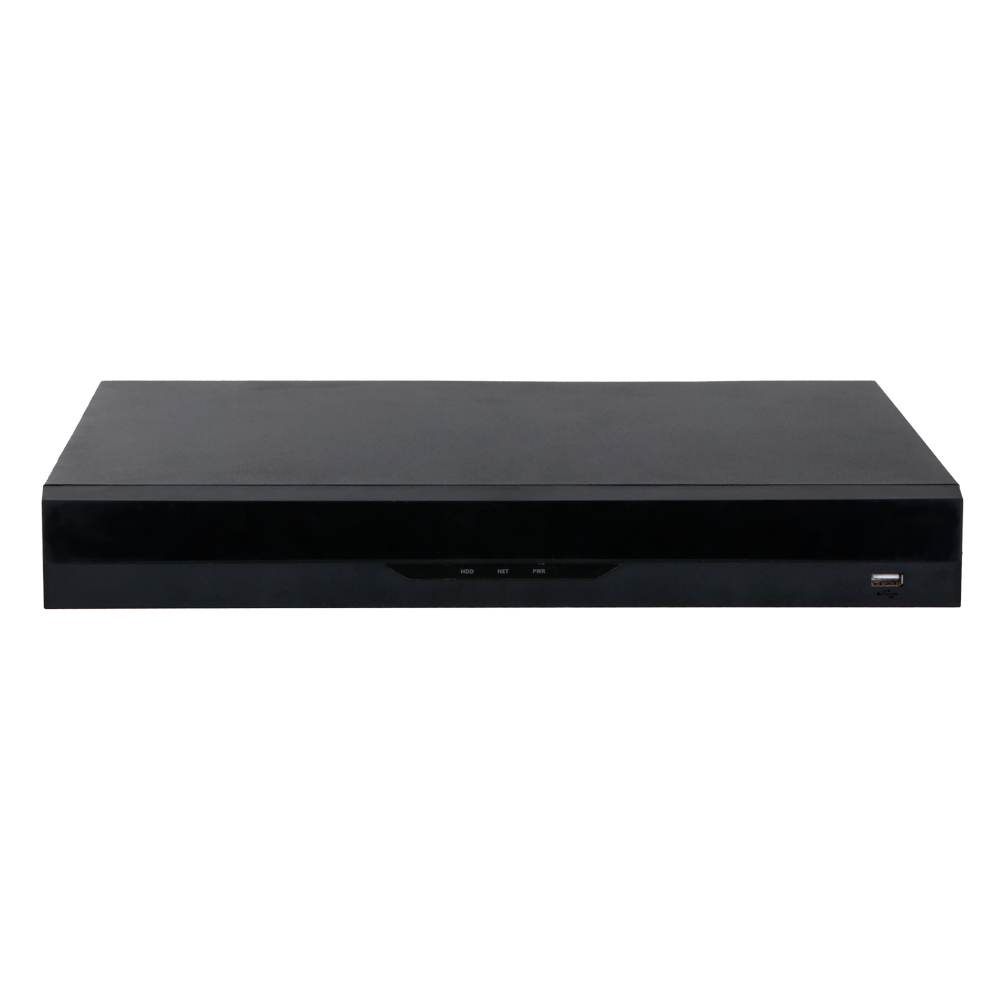

X-Security NVR for IP cameras - XS-NVR3216A-4K16P-1FACE

0 Rating
inkl. MwSt€255,94
Sales price €255,94
excl. MwSt €204,75
Total discount:
MwSt: €51,19
auf Lager
SKU: XS-NVR3216A-4K16P-1FACE
  • SKU: XS-NVR3216A-4K16P-1FACE
  • X-Security NVR for IP cameras
  • 16 CH IP video and 16 PoE ports
  • Maximum recording resolution 12 Mpx
  • 1 CH facial recognition
  • 2 CH human and vehicle recognition
  • Compression H.265+
Gls 1
Ups 1
1-3 Werktage
 geh zurück
Cards 1
  • XS-NVR3216A-4K16P-1FACE
  • X-Security
  • NVR for IP cameras
  • 16 CH
  • 80 Mbps bandwidth supported
  • Maximum resolution 12 Megapixel
  • 1 CH facial recognition
  • 2 CH perimeter protection with human and vehicle classification
  • Compression H.265+/H.265/H.264+/H.264/MJPEG
  • 16 PoE ports IEEE802.3af
  • VGA and HDMI 4K output
  • Alarms
  • Mouse
  • Space for 2 HDD
  • WEB, CMS (DSS/PSS), Smartphone and NVR interface
  • ONVIF Compatible

SKU XS-NVR3216A-4K16P-1FACE
Brand X-SECURITY
Inputs for IP cameras 16 channels
Video outputs 1 HDMI 4K, 1 VGA
Bidirectional audio 1 RCA input, 1 RCA output
Video compression format H.265+/H.265/H.264+/H.264/MJPEG
Video analysis IVS: Line Crossing | Area Intrusion | Face Detection | Face Detection
Facial recognition 1 live analogue face comparison channel
Intelligent motion detection Up to 2 channels capable of classifying targets amongst humans and vehicles
Total bandwidth 80 Mbps
Recording resolution 12Mp, 8Mp (on 1 channel), 6Mp, 5Mp, 4Mp, 3Mp, 1080P (on 4 channel), 720P, D1...
Simultaneous multifunction Pentaplex: Live, Recording, Playback, Backup and Remote Access
Alarms 4 IN / 2 Relay
Recording method Manual, programmed, motion detection
Backup USB (Memory, HDD, CD-RW, DVR-RW) / Network / SATA internal interface
Internal memory 2 SATA HDD 3.5" of up to 8 TB (not included)
Communication 2x USB 2.0 (Mouse and backup) /1 RJ45 10/100M (Ethernet)
Remote access Web browser (ActiveX), mobile phone application or PSS software
Power DC 12 V / 1.5 A / PoE IEEE802.3af
Dimensions 1U, 48 (H) x 260 (W) x 225 (D) mm / 0.8 Kg (without HDD)
