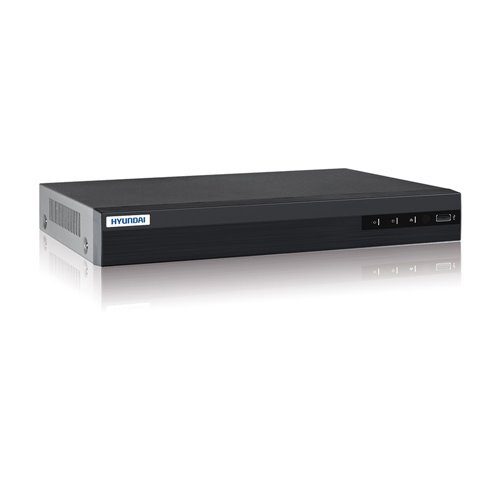

8-Kanal 5 in 1 ZVR-H.265 + / H265 / H.264 + / H.264 - ZVR5108M-4MLITE-1TB

- 8 channel 5 in 1 ZVR, H.265+/H265/H.264+/H.264
- 5technologies: IP cameras, HDCVI, HDTVI, AHD and CVBS
- H.265+ compression format improves storage and coding up to 70%
- 8 BNC inputs (coaxitron supported):
•HDCVI: 1080P/720P(telemetry control via coaxial cable of HDCVi cameras)
•HDTVI: 4M-N / 3MP (ch 1 & 2) / 1080P / 720P(onlyv3.0 cameras,not compatible with v1.0)
•AHD: 1080P/720P
•CVBS: 960H
- 2 IP input up to 4MP
- VGA and HDMI output up to 1920x1080
- BNC auxiliary interface up to 704x576
-2 way audio: 1 RCA in / 1 RCA out
- Display resolution: 1080P, 1080N (960x1080), 720P, 960H,D1/4CIF, VGA, CIF, QVGA, QCIF
-Recording resolution: 4M-N, 3MP (channel 1, only TVI), 4MP (IP only), 1080P, 1080N (960x1080), 720P,960H,D1/4CIF,VGA,CIF,QVGA,QCIF
-Stream1 on4M-N/3MP mode:
•Streamat4M-N/3MP: 4M-N, 3MP (15 fps)
-Stream1 on1080P mode:
•Stream at 1080P: 1080P,720P (15 fps),960H,D1/4CIF, VGA,CIF (25/30 fps)
•Stream at 720P: 720P,960H, D1/4CIF,VGA,CIF (25/30 fps)
- Stream2: 960H, D1/4CIF (12 fps),CIF (25/30 fps)
- 8 channel simultaneous playback at 1080p
- Multi-camera inverse playback
- Local playback speed up to x 256 (forward and backward)
- Special Western Digital Purple CCTV HDD of 1 TB
-Supports hard disk quota mode; allows assigning different capacities to different channels
- Graphical user interface (GUI) and one-button recording support (Wizard)
- Video quality diagnostic manual
- Search and reproduction by tags
-Locking and unlocking log files
- Ethernet network interface RJ45 (10/100M) auto-adaptive
-Network protocols: TCP/IP, PPPoE, DHCP, P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS
- CompatiblewithONVIF
- Remote access up to 128 users
- Remote access via iPhone/iPad, Android
-Multibrowser compatibility:Chrome, Firefox, Safari, IE
- P2P cloud, DDNS DEMES, Push and channel zero
-Connections: 2USB 2.0, 1 RS485 half-duplex
-Power supply: 12V DC
- Consumption: =7,5 W
-Working temperature: -10°C ~ +55°C
-RH:10~90%
- Dimensions: 315x 242 x 45mm (desktop)
-Weight:=1,78 kg
